Mul-T-Lock® Electric Strikes
An electric strike is an access control device used for doors. It replaces the fixed strike faceplate often used with a latchbar (also known as a keeper). Like a fixed strike, it normally presents a ramped surface to the locking latch allowing the door to close and latch just like a fixed strike would. However, an electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened, allowing a user to open the door without operating the mechanical lock or using a mechanical key. After the door is opened past the keeper, the keeper returns to its standard position and re-locks when power is removed or applied, depending upon the strike's configuration.
- Fail Secure: Also called fail-locked or non-fail safe. In this configuration, applying electric current to the strike will cause it to unlock. In this configuration, the strike would remain locked in a power failure, but typically the mechanical lock can still be used to open the door from the inside for egress from the secure side. These units can be powered by alternating current, which will cause the unit to buzz, or DC power, which offers silent operation, except for a "click" while the unit is powered
- Fail Safe: Also called fail-open. In this configuration, applying electric current to the strike will cause it to lock. It operates the same as a magnetic lock would. If there is a power failure, the door opens merely by being pushed or pulled. Fail-safe units are always operated with direct current.
Mul-T-Lock®electricdoorstrikesaredesignedwithanadjustablekeeper to simplify the installation. The latch cavity accommodates locksets with a 1/2”to 5/8” throw in metal, wood or aluminum frames.
FEATURES
- BHMA Grade 2
- Burglary Resistant according to UL 1034
- 1,000 lbs. Static strength
- 33 ft-lbs. Dynamic strength
- Endurance rating 1,000,000
- Strike depth – 1–1/2”
- Adjustable keeper
- Fail secure or fail safe
- Fully reversible for right or left-hand doors
- Continuous duty operation (DC)
- Mechanical override optional
- 5 years limited warranty
APPLICATIONS
- Commercial Centers
- Industrial Buildings
- Educational Facilities
- Retail Outlets
- Health Care Institutions
- Office Complexes

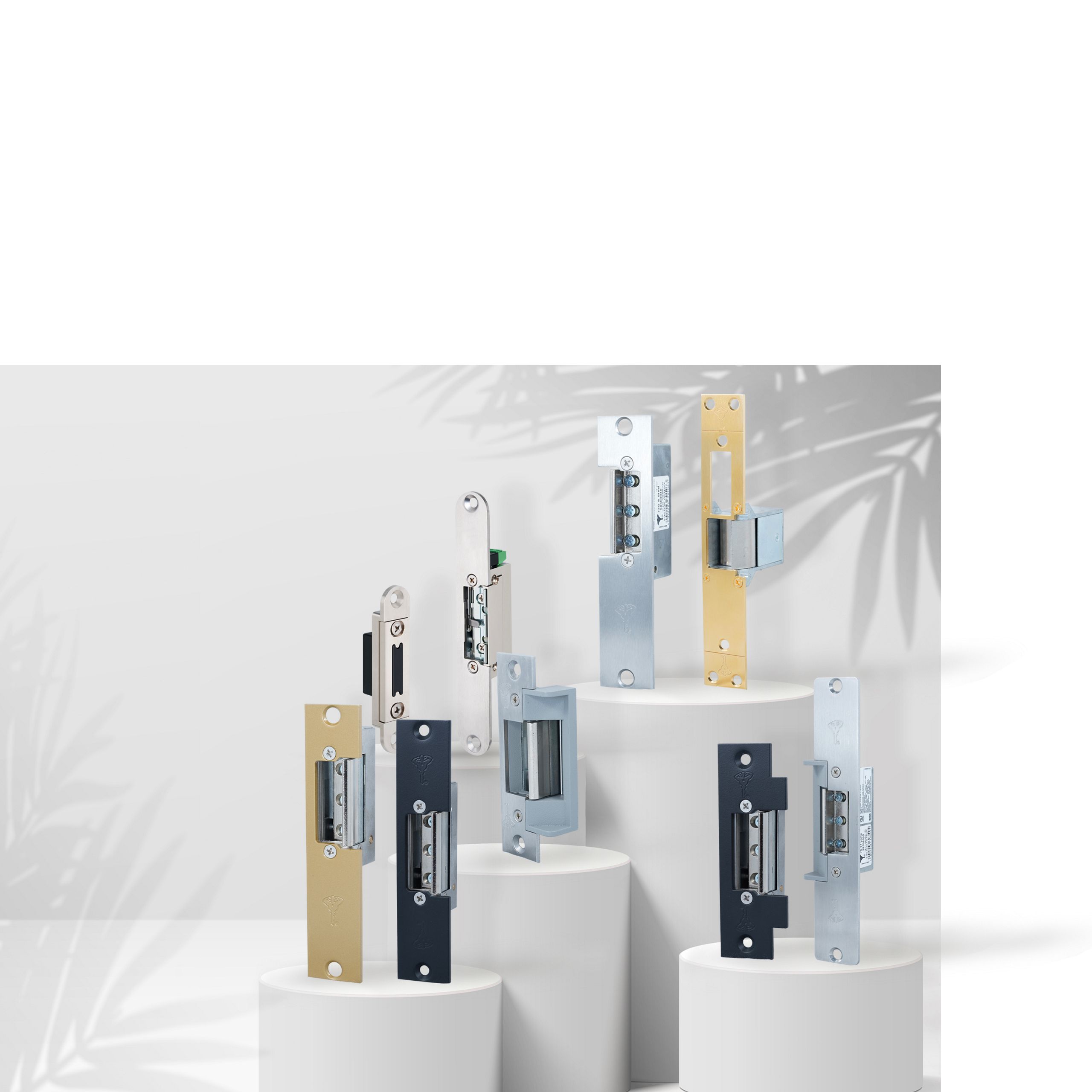

Electric Strike Product Line

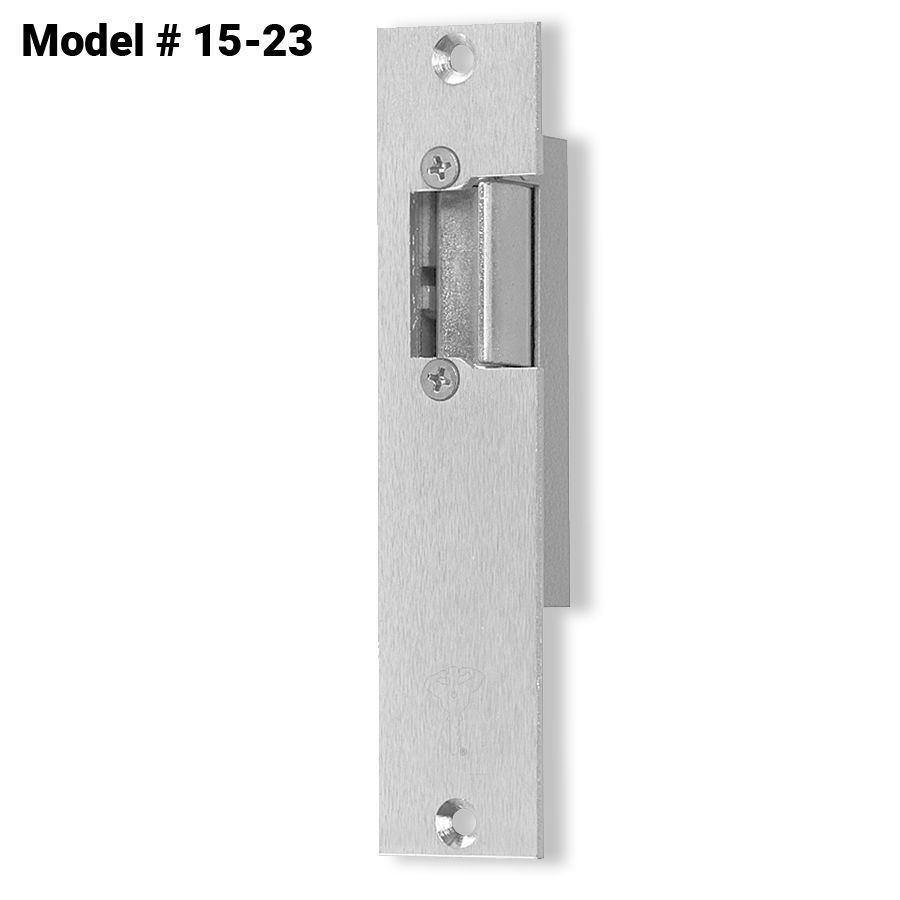

Fit for: new / replaced wood & metal door frame installations with mortise lock that has a deadbolt. Reversible plate
For use with: locksets having up to 5/8” throw, based on 1/8” door gap

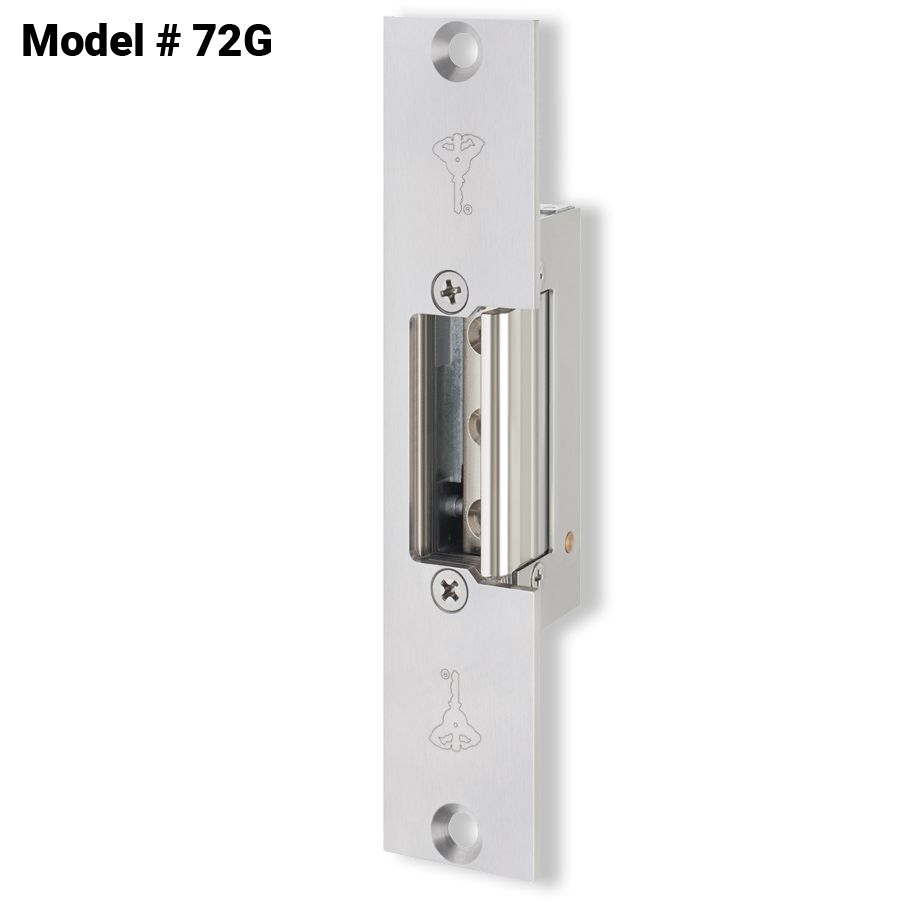

Fit for: new / replaced wood & metal door frame

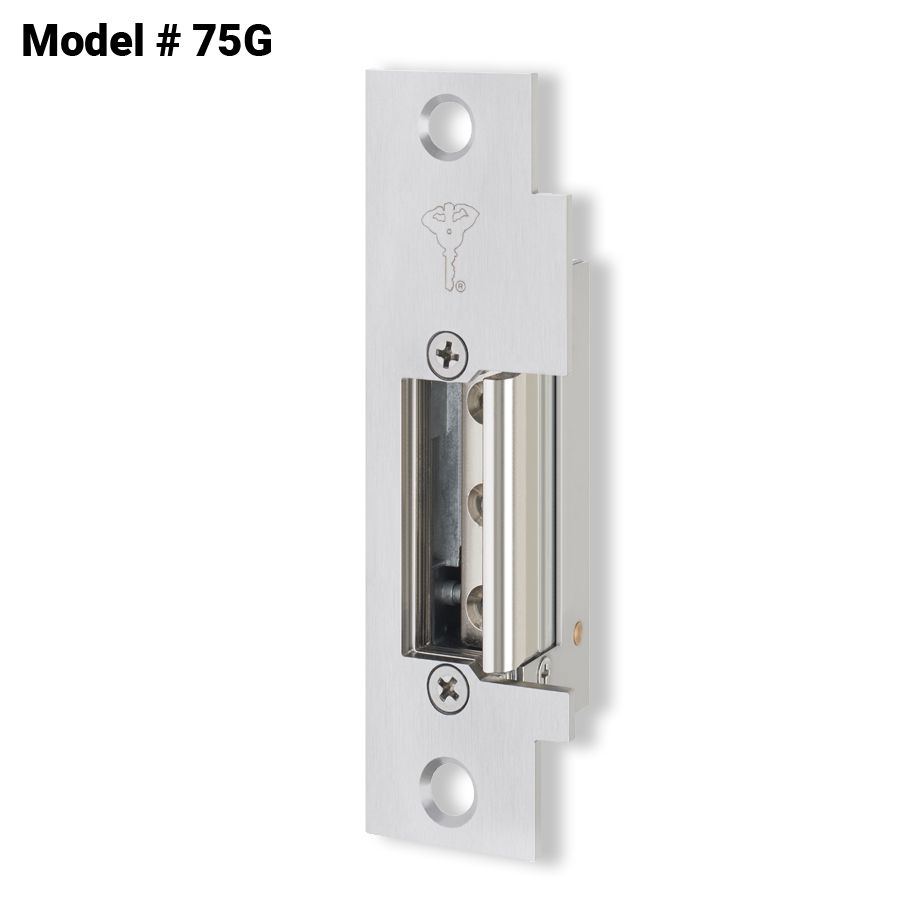

For use with: locksets having up to 5/8” throw, based on 1/8” door gapFit for: new / replaced wood & metal door frame

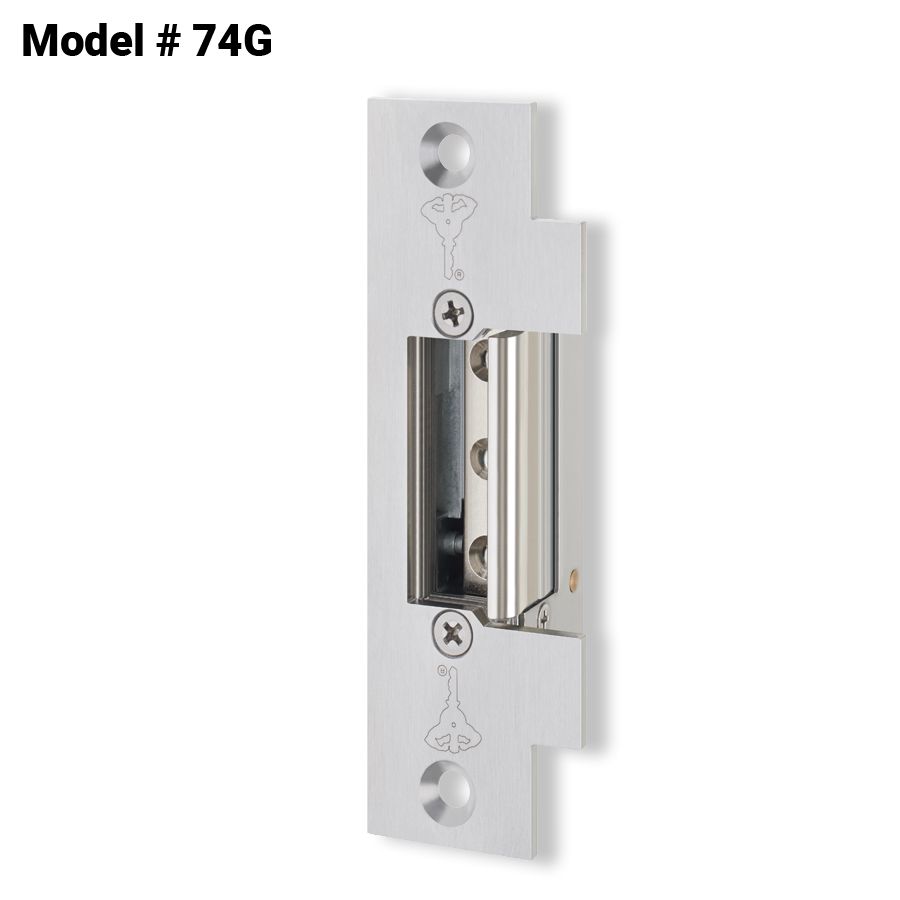

For use with: locksets having up to 5/8” throw, based on 1/8” door gapFit for: new / replaced wood & metal door frame

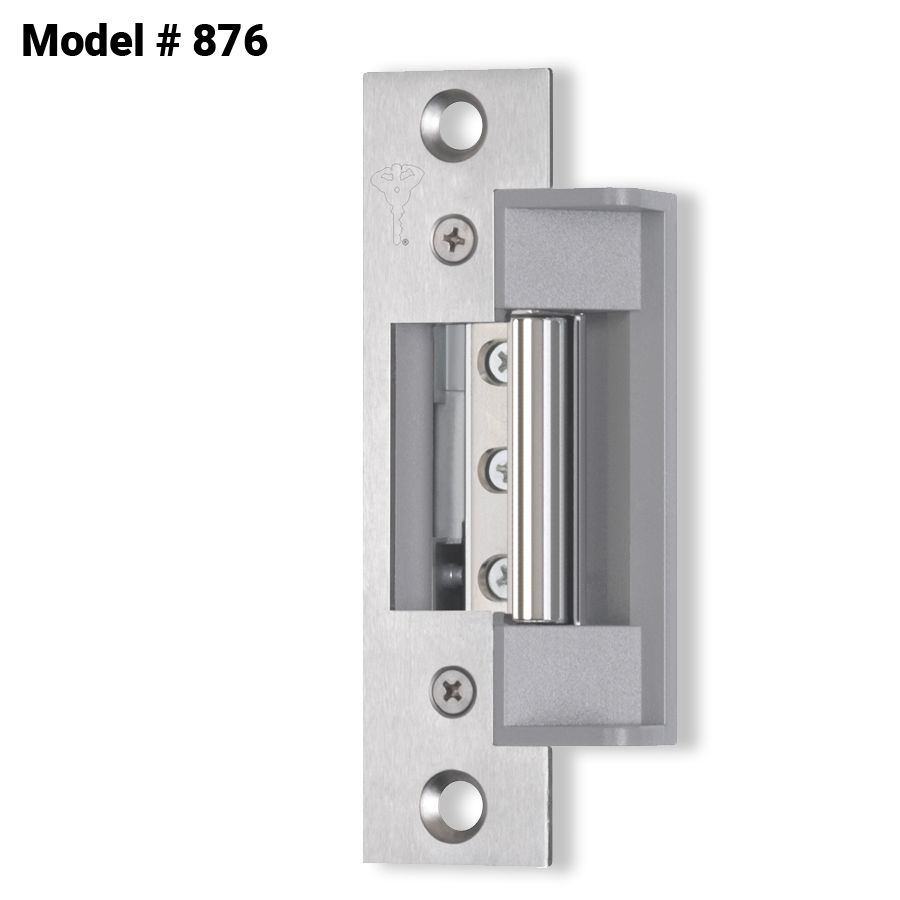

For use with: locksets having up to 5/8” throw, based on 1/8” door gapFit for: new / replaced metal door frame
For use with: locksets having up to 5/8” throw, based on 1/8” door gapFit for: new / replaced metal door frame

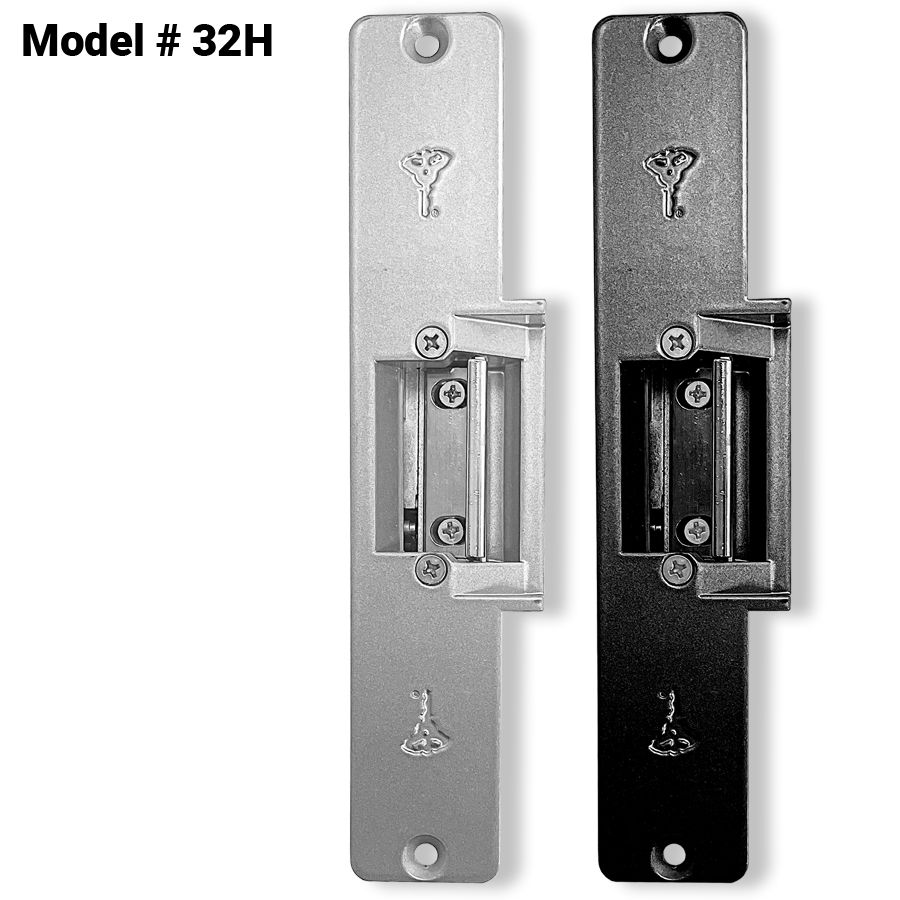

For use with: locksets having up to 5/8” throw, based on 1/8” door gapFit for: new / replaced aluminum & metal door frame
For use with: locksets having up to 5/8” throw, based on 1/8” door gapFit for: new / replaced aluminum & hollow metal door frame - retrofit for existing US models
For use with: latch bolts having up to 5/8” throw, based on 1/8” door gap

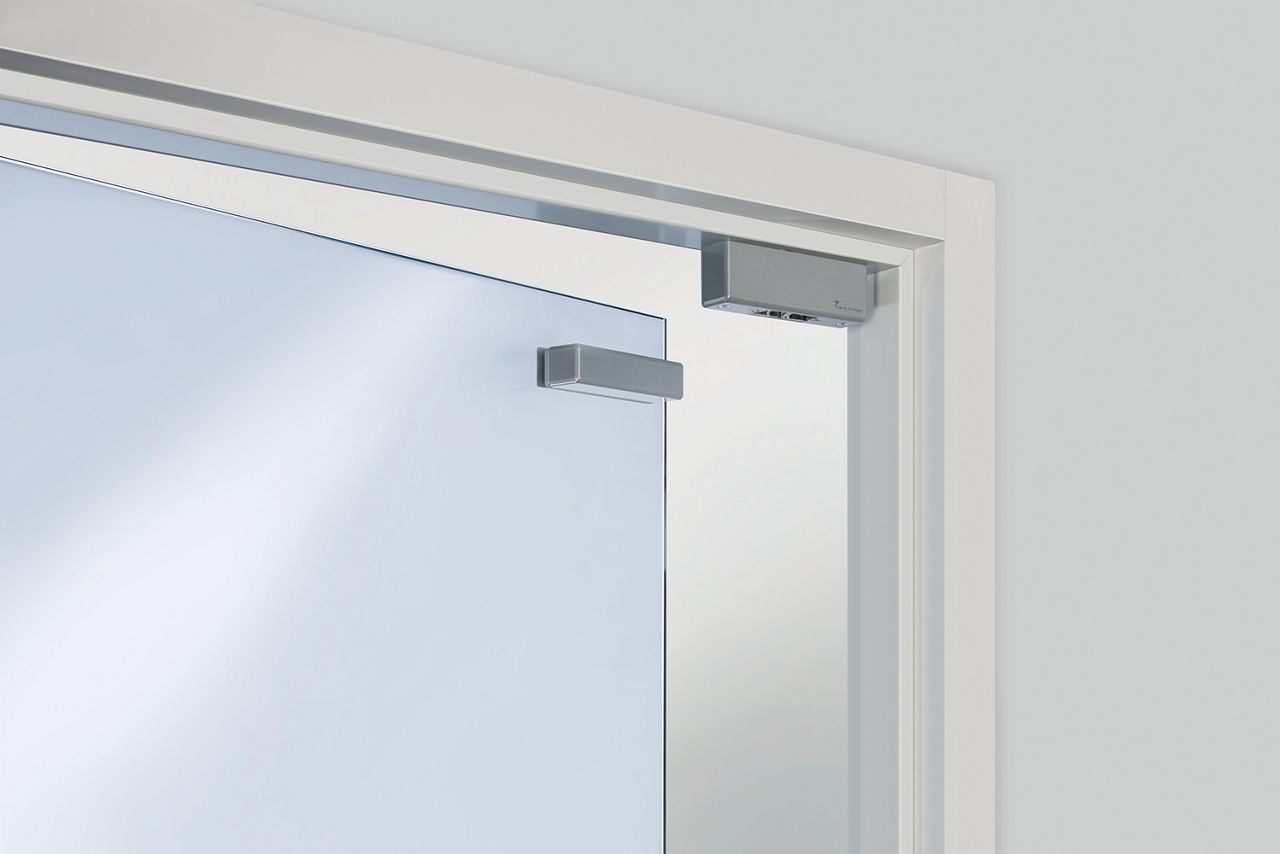

Unistrike Product Line
