Lock Cases

Application
Security lever lock for wood and steel doors.
Preferred installation as additional lock for reinforcing security level.

Operation
Double key turn for bolt action
Right- or left-hand applications
Bolt throw: 1 key turn 18 mm; 2 key turns 36 mm

Options
Keys: 3 double-bit keys; 5 double-bit keys
Front plate plating: Chrome nickel; Satin nickel; Shiny brass

Specifications
Backset: 60 mm
Triple round deadbolts: Ø16 mm
Keyway protective plate hinders drill attacks

Materials
Case: galvanized steel
Mechanism: steel
Bolts: chrome nickel-plated steel
Front plate: see options
Keys: chrome nickel-plated brass

Application
Suitable for wood and steel doors, providing single-bolt locking.

Operation
Compatible with Mul-T-Lock Euro profile cam cylinders
360˚/720˚ key rotation for bolt action
Bolt throw: 17 mm for 360˚ key turn; 34 mm for 720˚ key turn
Additional travel for latch action
Right- or left-hand applications
Handle spindle with ball-bearing mechanism for high-traffic doors

Specifications
Backset: 60 mm
Triple round deadbolts: Ø16 mm
Latch: Ø20 mm

Materials
Case: galvanized steel
Mechanism: steel
Bolts and front plate: chrome nickel plated steel

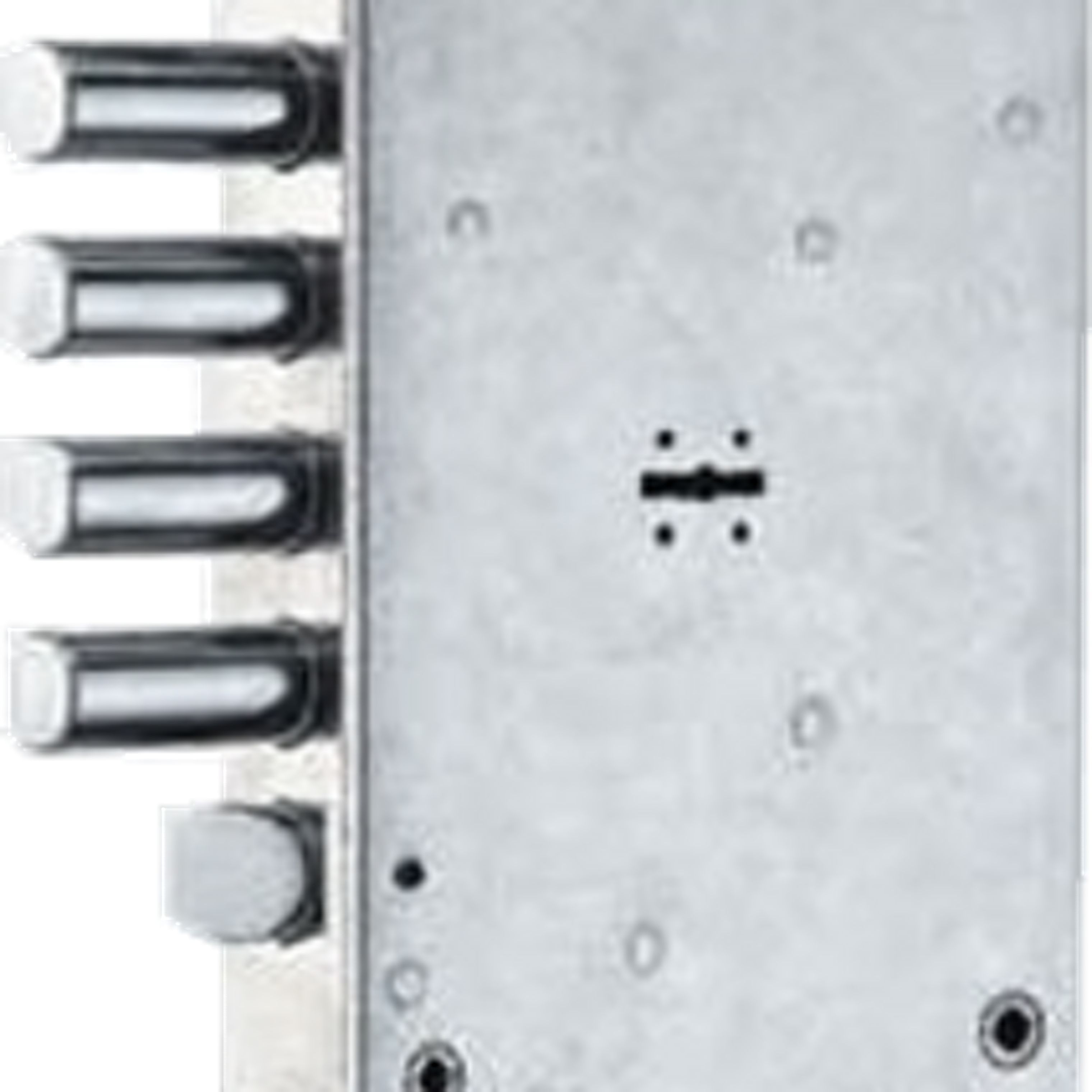

Category of use

Multipoint security lock for heavy duty steel doors-mounted during door assembling.

Description

Double activated by Euro cylinder with DIN cam and lever key, double turn for each mechanism.

Features

• LATCH-reversible (L,R option)
• when the lever lock is fully locked, the latch cannot be operated wtih handle or cylinder.
• when the cylinder lock is locked, the lever lock cannot be operated (open or close).
• Suitable for auxiliary lock A103

Dimensions

BS=65, CC1=85, CC2=120, Bolts Diameter 18mm

Finishes

• Front plate: stainless steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated
• Lever keys with plastic head with MTL logo

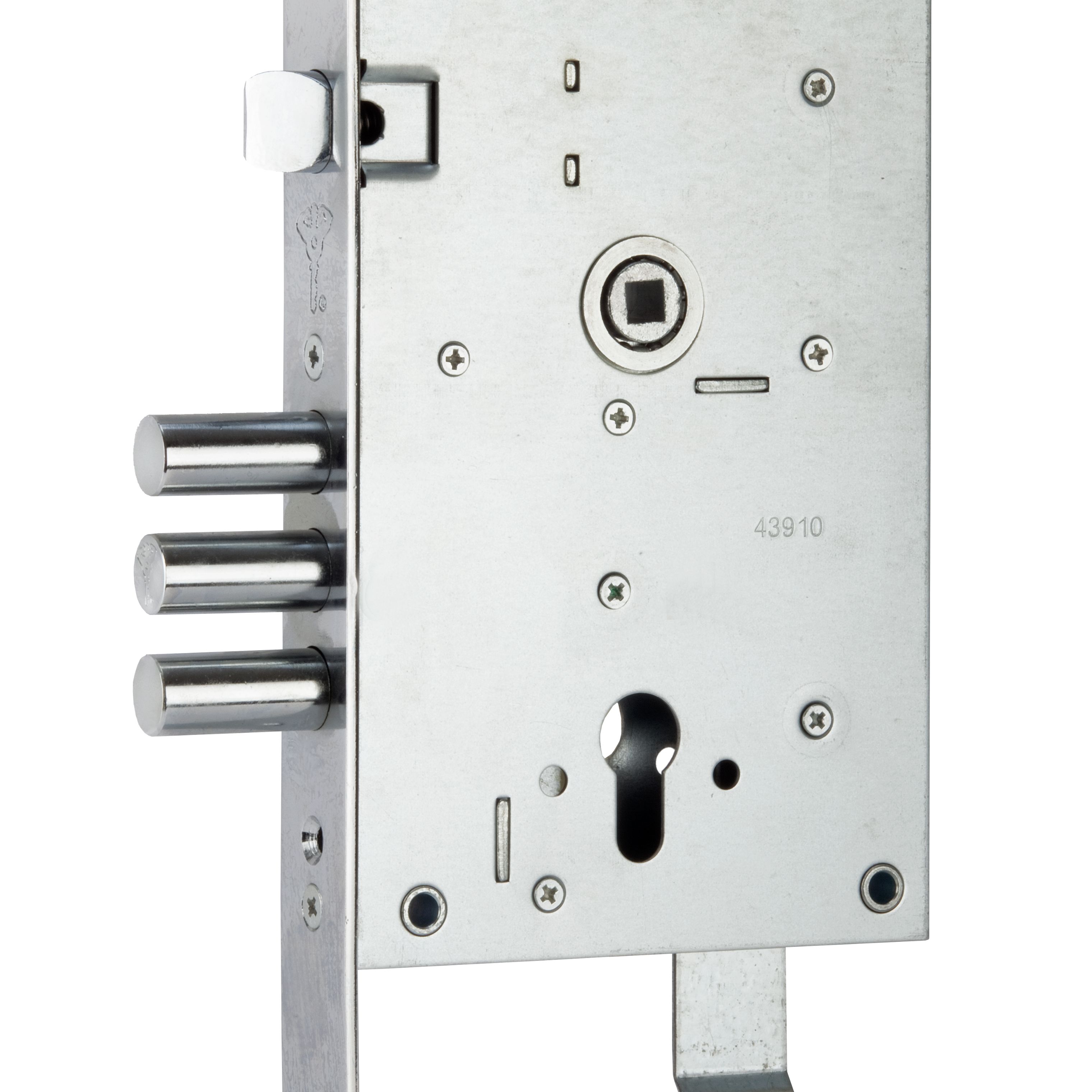

Category of use

Multipoint security lock for heavy duty steel doors.

Description

• Activated by Euro cylinder with DIN cam mechanism
• Double Turn dead bolt function 17/35mm

Features

• LATCH-reversible (L,R option)
• Suitable for auxiliary lock A103


Dimensions

BS=65, CC=85, CC2=120, Bolts Diameter 16 mm x 3

Finishes

• Front plate: Chrome-Nickel plated steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated steel

Category of use

Multipoint security lock for heavy duty steel doors-mounted during assembling.

Description

Activated by Euro cylinder with DIN cam.  Double rotation of the cylinder 29 (15+14) mm stroke

Features

• LATCH-reversible (L,R option)
• When the bolts are in closed position the latch is disable with the handle
• Suitable for auxiliary lock A103


Dimensions

BS=65, CC1=85, Bolts Diameter 18 mm

Finishes

• Front plate: stainless steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated

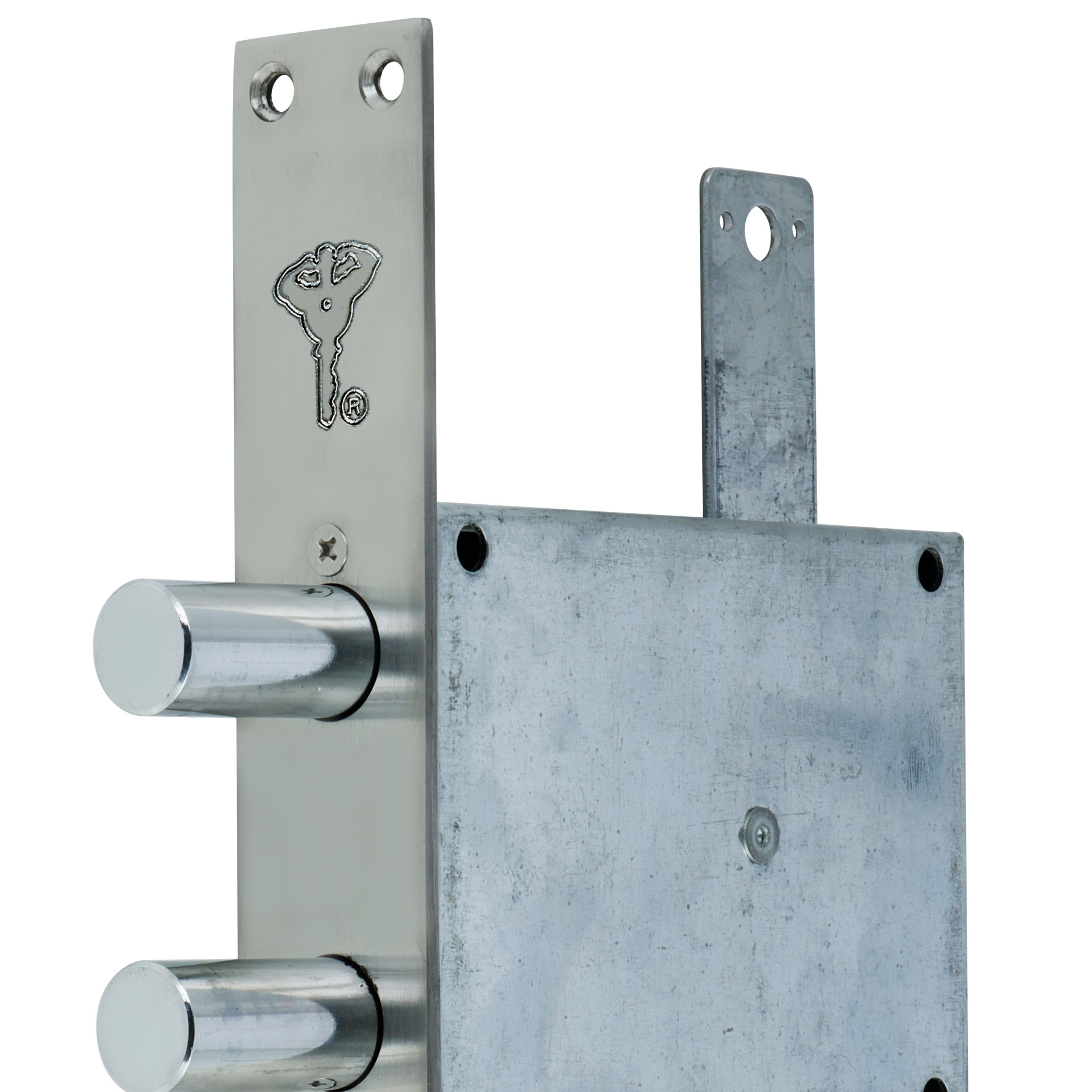

Suitable for general use as auxiliary lock.

• 352R
• 204A

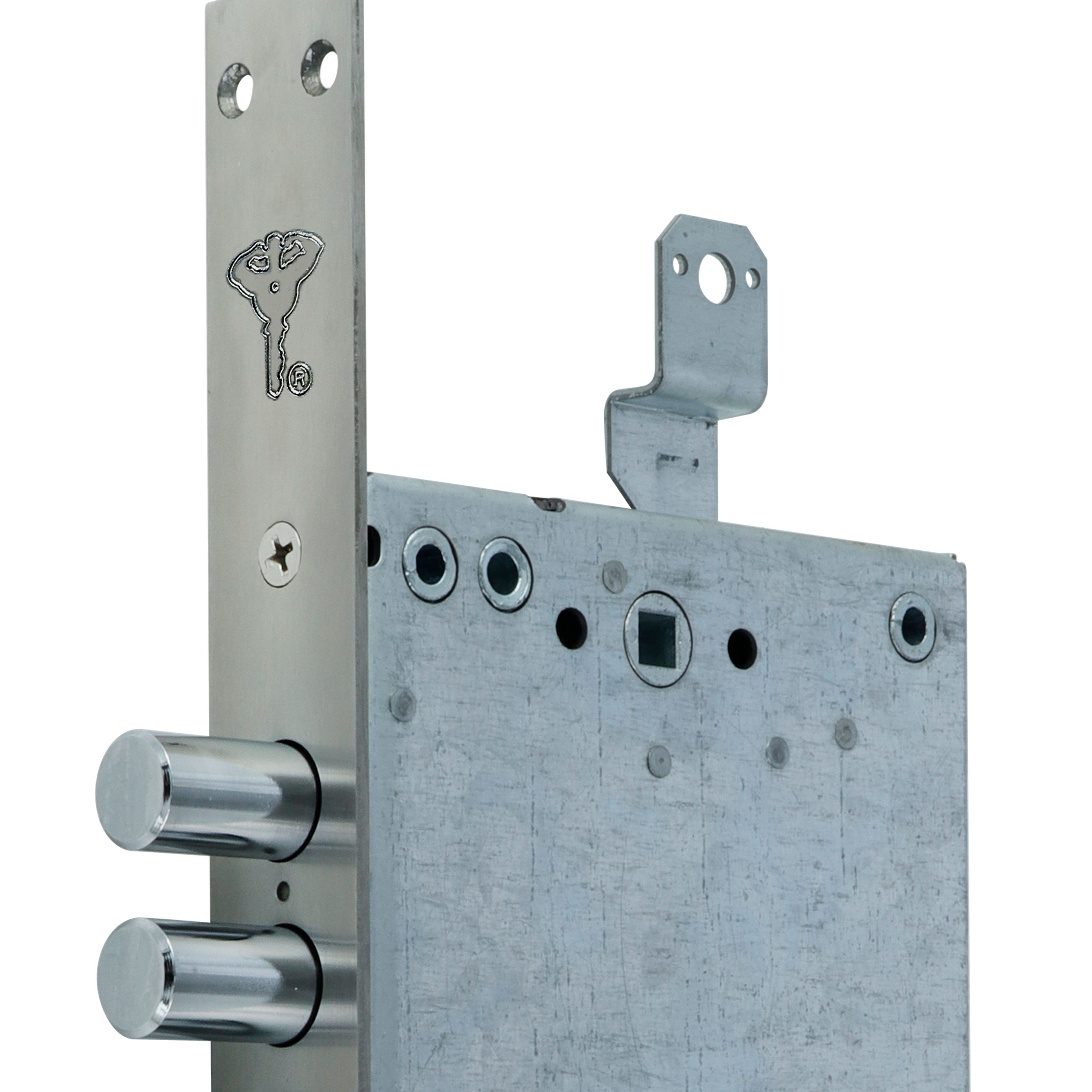

• 104A

           Double bolt with 18 mm diameter

Function

• Bolt Stroke 28mm
• Vertical Drop 20+1.0 mm

Lock Finish

• Front plate: stainless steel
• Lock box: galvanized steel
• Bolts and Latch: Chrome nickel plated
