SMARTair® Knob Cylinder
Function
The SMARTair Knob Cylinder is an easy-to-use, simple-to-install, and highly effective electronic cylinder that can be integrated with other SMARTair locking elements − escutcheons, wall readers, e-motion − in one Access Control system managed by SMARTair Software.
The Knob Cylinder is upgradable from Standalone to Offline/Update-On-Card and/or Wireless, making it the perfect solution for both new and retrofit installations.
The SMARTair knob cylinder world-class design is robust and resistant. The knob cylinder comes in more finishes and colors, upgrading aesthetics and functionality in equal measure. Suitable for any door, it quickly upgrades your existing mechanical cylinder to a real-time access-controlled cylinder – without any drilling or wiring at the door.
Mechanical features
Freewheeling knob until an authorized credential is presented
Motorized clutch activates cylinder cam
Compatible with a mass variety of standard mortise locks (Euro, Scandinavian, Finnish and ANSI models are available)
Panic function: Internal knob turning always opens door (only Euro model)
Available Knob Cylinder models:

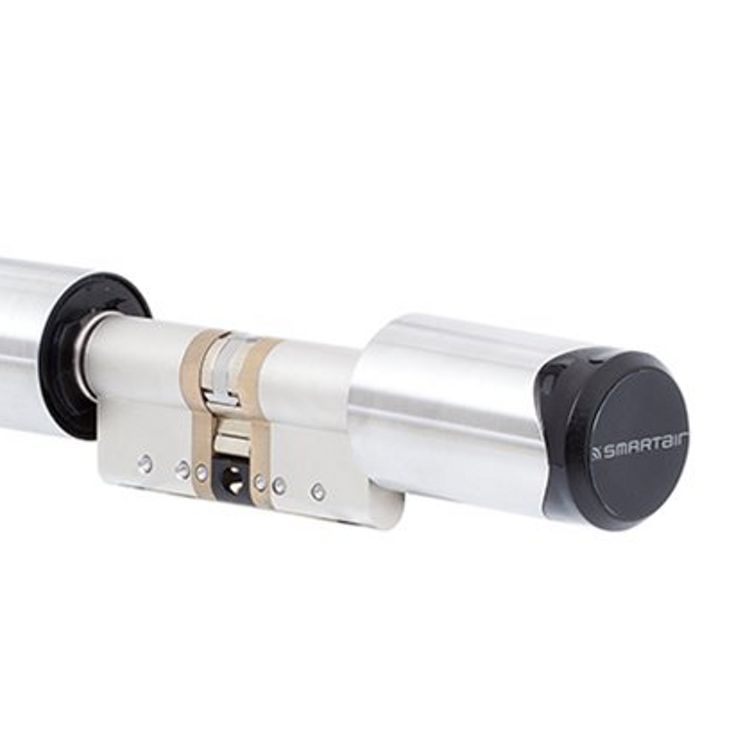

Euro - Double cylinder (one or two electronic sides), half cylinder,
Mortise cylinder
Scandinavian - Double cylinder (one or two electronic sides), half cylinder
Application

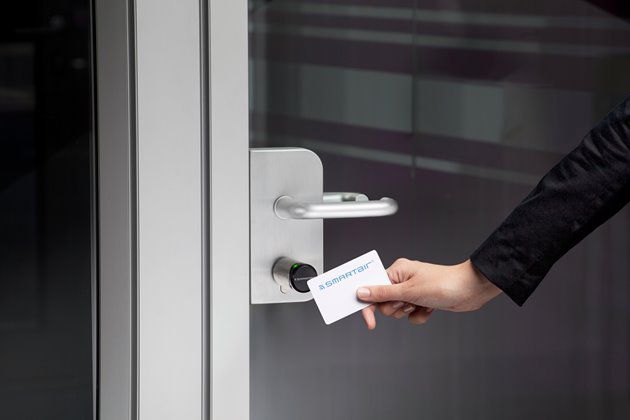

The new SMARTair knob cylinder is a wireless locking device designed for office and meeting room doors, as well as existing glass, aluminum or wooden doors where installing an escutcheon proves difficult.
Door profiles
Suitable for wooden, narrow or glass doors
Traffic volume
Medium to high
Exterior usage
IP56 (Extreme version) Up to 85% humidity. -20°C to + 70°C
Hardware compatibility and installation
High retrofit (compatible with most common mortise locks)
No Drilling, no cabling
Doors from 30mm up to 120mm (thicker doors may be possible on demand)
Power supply
Battery (up to 60.000 cycles) max. 2 years standby
Type of batteries: One CR2 3V Lithium batteries
Multiauthentication
No
Status information
Handle usage (only Wireless Online system)
Thumb turn use: only in privacy model
Door position: door sensor not included NO (normally open) connection
Override cylinder (in combination with special mortise lock)
Certifications
CE (EMC, R&TTE)
ROHS, REACH, WEE
Durability EN15684 (Grade 6)
RFID technologies
13,56MHz Read & Write technologies
MIFARE Classic and Ultralight
HID iCLASS, DESFire, SKIDATA
Compatible mobile solutions
Openow (Offline and Wireless Online management systems)
SMARTair (only with wireless system)
System management upgradability
SMARTair escutcheons can be upgradeable from Standalone:
Compatible with all SMARTair systems:
- Standalone*
- Offline/Update on card*
- Offline/Update on card + Openow
- Wireless + Openow
SMARTair knob cylinders can be:
- Upgraded from Standalone -> Offline/Update on Card*
- Upgraded from Offline/Update on Card + Openow -> Wireless + Openow
Both options just changing the firmware with the programming device.
*The knob cylinder does not include the Openow or Wireless +Openow module. Therefore, it is not possible to upgrade them to Offline/Update on card + Openow or to Wireless + Openow.
