SMARTair® ANSI
Function

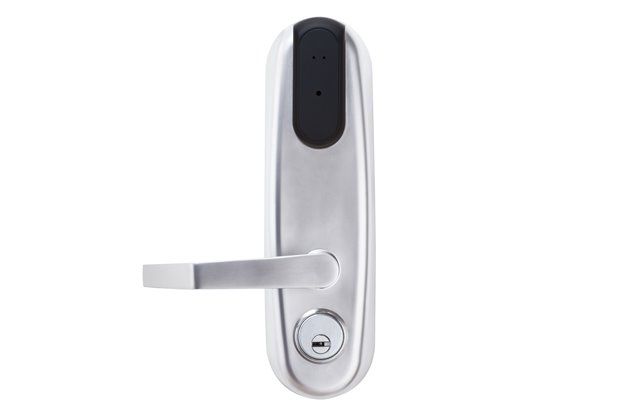

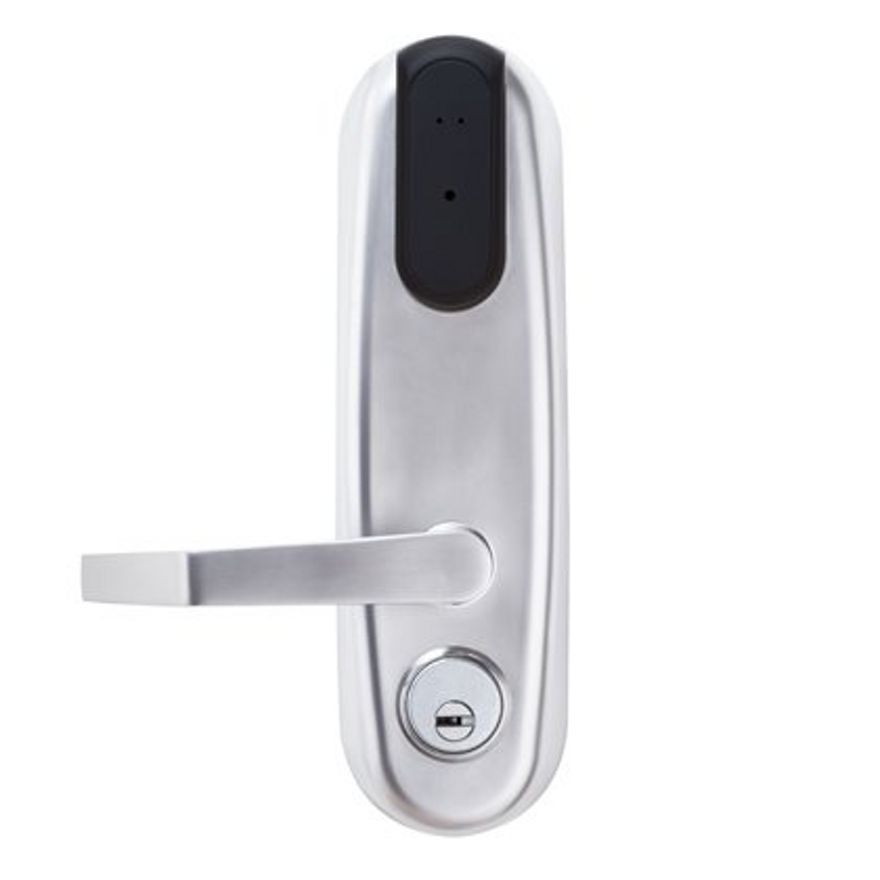

A wireless device to bring secure RFID and BLE unlocking to every high-traffic door. SMARTair ANSI escutcheon is easy to retrofit and compatible with online or offline system management. It is an ideal alternative to mechanical keys, and easily fitted to upgrade your doors with powerful access control.
Applications
Wireless and battery powered, SMARTair ANSI escutcheon with integrated RFID reader and locking mechanism suits office and meeting room doors, or any door where daily traffic volume is high:
commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.
The escutcheon’s two parts are installed directly onto the door, with no need to change the existing mechanical lock. It is perfect for retrofitting, because no wiring or cabling is required. All electronic locking elements are secured on the inside.
13.56 MHz, HID iClass® DESFire & MIFARE® RFID technology
Contactless RFID cards / tags / fobs / silicon & disposable wristbands
2 possible memory configurations: 1,500 users and 600 events in the event log; 1,000 users and 1,000 events in the event log
2 to 4 cm read/write distance
Powered by 3 x AA batteries
Conforms to ANSI grade 1
ANSI A115 prep modified for through-bolts
ADA-compliant levers
RF module frequency: 915 MHz
Shabbat compliant
UL-3hour fire rate latch bolt
Door width: 1 3/8" (35mm); 1 ¾" (44.5mm); 2 ¼" (57mm)
Options
Handles: SENA, TOLEDO
Finish: Inox, Satin chrome, PVD polished brass, PVD satin brass
Privacy feature
May be installed with or without cylinder
Cylinder options: Classic, Interactive®+, MT5®, 7x7, Integrator® platforms; Keyed different, Keyed alike; Master keying; '3 in 1' (changeable combination); FleX Control
Internal / external models available
Cylindrical version: 2¾" (70mm) backset - standard; 2⅜" (60mm) backset - available
Mortise version: Automatic deadbolt - standard; Latch only version - available
Installation with a Panic Exit Device (PED)
