SMARTair^® i-max

A robust wireless device to bring secure RFID and BLE unlocking to every high-traffic door. i-max, an electronic escutcheon is easy to retrofit and compatible with Standalone, UOC, online or offline system management.

Application

SMARTair i-max comes in a variety of finishes and with a slimline design to fit every building style and scheme. Different models of handles and antibacterial surface for healthcare applications are available.

Technical Data
Door profiles - Suitable for wooden, narrow or glass doors
Traffic volume - meduim to high
Exterior usage - IP54 (Xetreme version) Up to 85% humidity -20 °C to +70 °C
Hardware compatibility and installation - High retrofit (compatible with most common mortise locks). Drilling, no cabling. Doors from 30mm up to 110mm (thicker doors may be possible on demand)
Power supply - Battery (from 60.000 to 80.000 cycles)* max. 2 years standby**
Types of batteries:: 3 LR03 AAA 1.5V alkaline batteries

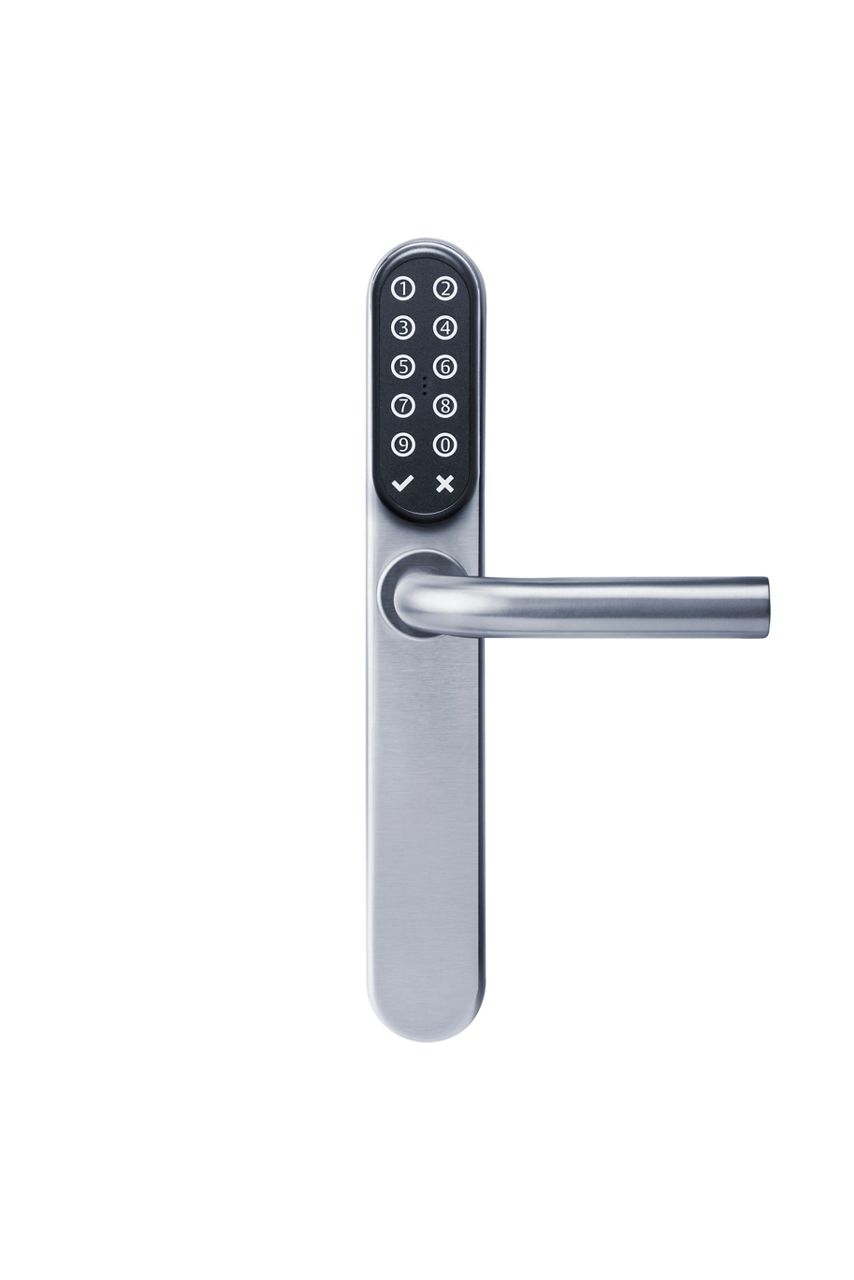

Multi-authentication - RFID and PIN
Status informatin - Handle usage. Thumb turn usage: only in privacy model/ door position: door sensor ot included. No (normally open) connection. Override cylinder (in combination with special mortise lock)
Certification - CE (EMC, R&TTE). ROHS, REACH, WEE. EN1634 (Fire)
RFID tegnologies - HID iClass(R). MIFARE Classic and Ultralight SKIDATA. DESFire.
System management upgradability - Escutcheons can be upgraded from standalone > Offline. Update on Card > Wireless online by:
- Adding RF Module
- Fireware upgrade
- Change of internal cover (plastic top)

* Depending on reading technology (MIFARE), iClass etc.)
** Depending on cycles per day.
