A wireless, electronic IP68 padlock, built for trusted security in the harshest conditions. Your premises can benefit from modern security and real-time access control — outside and inside.
The new SMARTair® i-gate Padlock is a battery powered locking device improved in every way. As well as resistance to physical attack, it has an external cover which is watertight and protects against any weather.
Easily installed, with no drilling or wiring required. Use is straightforward: RFID and BLE-enabled, i-gate Padlock can be opened with standard RFID credentials or by a mobile key stored on a smartphone. Power is supplied by standard batteries with a long lifetime.
To upgrade an existing mechanical padlock, simply swap it for the SMARTair® i-gate Padlock to control and monitor the opening from your existing SMARTair® access system. You can move an i-gate Padlock wherever and whenever you need.

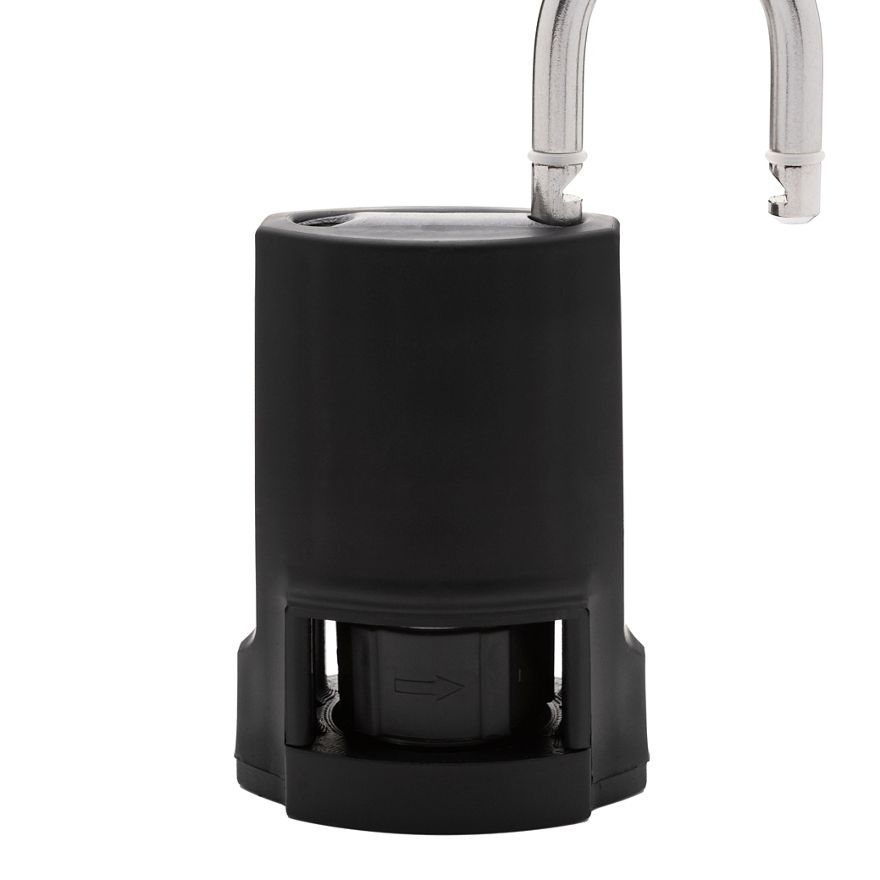

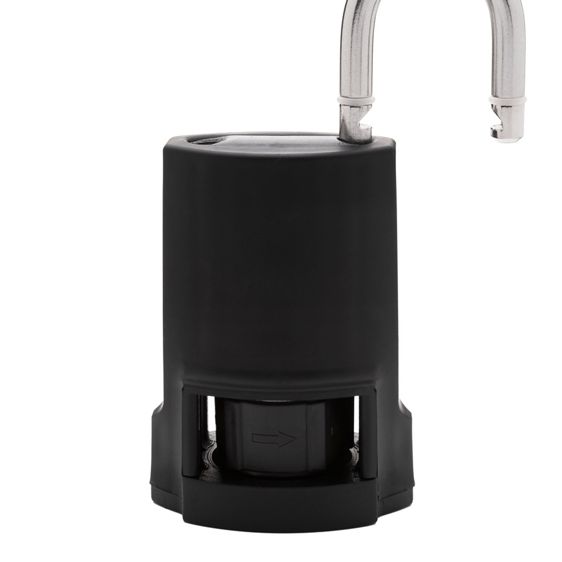

The SMARTair® i-gate Electronic Padlock comes in a contemporary black finish with stainless steel shackle. It is suited locking exterior, non-electrified gates; interior cupboards and cabinets; and anywhere else currently secured by mechanical padlock.
Key features of the new i-gate Electronic Padlock include:
- Compatible with all SMARTair® management options, online and offline
- Use RFID credentials, Openow virtual keys or the SMARTair® Remote app
- Exterior usage rating: IP68
- Internal knob cylinder has Durability EN 15684 Class 6 certification
- RFID reader with LED (blue/red) for different warning signals
- Typical battery lifetime: 60,000 cycles
Door profiles
External gates, closets, cabinets, etc.
Traffic volume
Medium to high
Exterior usage
IP68 Certification. Resistant to real extreme weather conditions
Up to 85% humidity
-20°C to + 70°C
Hardware compatibility and installation
High retrofit
No drilling, no wiring
Power supply
Battery (60.000 cycles)
Depending on the reading technology (MIFARE, DESFire, Etc.)
Max. 2 years standby (depending on cycles per day)
Type of batteries: One CR2 3V
Lithium battery
Multiauthentication
No
Certifications
CE (EMC, R&TTE)
ROHS, REACH, WEE, Durability
EN15684 Class 6, IP68
RFID technologies
13,56MHz Read & Write technologies
MIFARE Classic and Ultralight,
HID iCLASS, DESFire, SKIDATA
Compatible mobile solutions
Openow™ (Bluetooth® Low Energy)
TESA SMARTair (only with WIRELESS system)
System management upgradability
Compatible with all SMARTair systems:
· Standalone*
· Offline/Update on card*
· Offline/Update on card + Openow
· Wireless + Openow
SMARTair padlocks can be:
. Upgraded from Standalone --> Offline/Update on Card*
· Upgraded from Offline/Update on Card + Openow -> Wireless + Openow
