SMARTair^®

Function

The SMARTair Knob Cylinder is an easy-to-use, simple-to-install, and highly effective electronic cylinder that can be integrated with other SMARTair locking elements − escutcheons, wall readers, e-motion − in one Access Control system managed by SMARTair Software.

The Knob Cylinder is upgradable from Standalone to Offline/Update-On-Card and/or Wireless, making it the perfect solution for both new and retrofit installations.

The SMARTair knob cylinder world-class design is robust and resistant. The knob cylinder comes in more finishes and colors, upgrading aesthetics and functionality in equal measure. Suitable for any door, it quickly upgrades your existing mechanical cylinder to a real-time access-controlled cylinder – without any drilling or wiring at the door.

Mechanical features

Freewheeling knob until an authorized credential is presented
Motorized clutch activates cylinder cam
Compatible with a mass variety of standard mortise locks (Euro, Scandinavian, Finnish and ANSI models are available)
Panic function: Internal knob turning always opens door (only Euro model)
Available Knob Cylinder models:
Euro - Double cylinder (one or two electronic sides), half cylinder,

Mortise cylinder

Scandinavian - Double cylinder (one or two electronic sides), half cylinder

Application

The new SMARTair knob cylinder is a wireless locking device designed for office and meeting room doors, as well as existing glass, aluminum or wooden doors where installing an escutcheon proves difficult.

Function

A wireless device to bring secure RFID and BLE unlocking to every high-traffic door. SMARTair ANSI escutcheon is easy to retrofit and compatible with online or offline system management. It is an ideal alternative to mechanical keys, and easily fitted to upgrade your doors with powerful access control.

Applications

Wireless and battery powered, SMARTair ANSI escutcheon with integrated RFID reader and locking mechanism suits office and meeting room doors, or any door where daily traffic volume is high:

commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.

The escutcheon’s two parts are installed directly onto the door, with no need to change the existing mechanical lock. It is perfect for retrofitting, because no wiring or cabling is required. All electronic locking elements are secured on the inside.

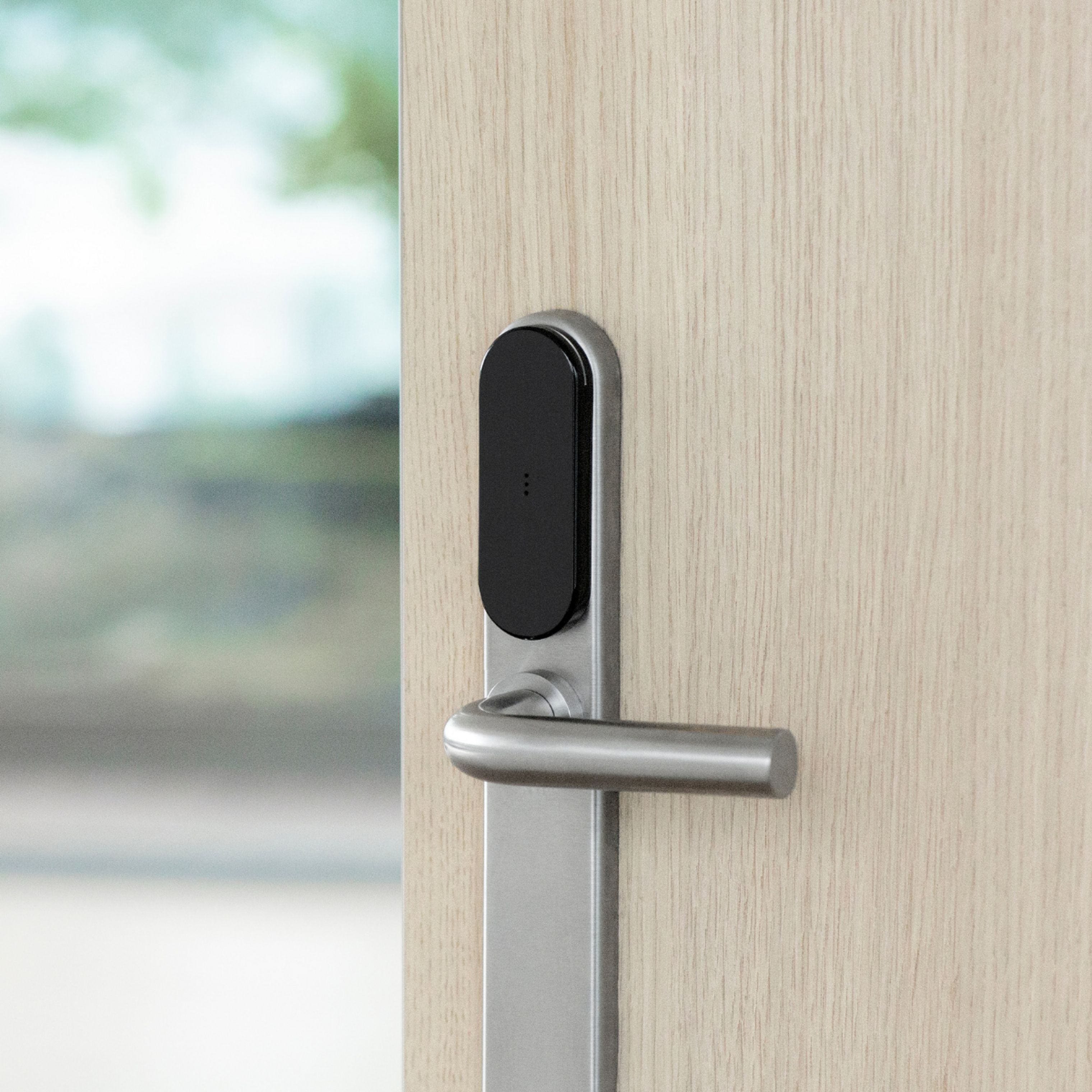

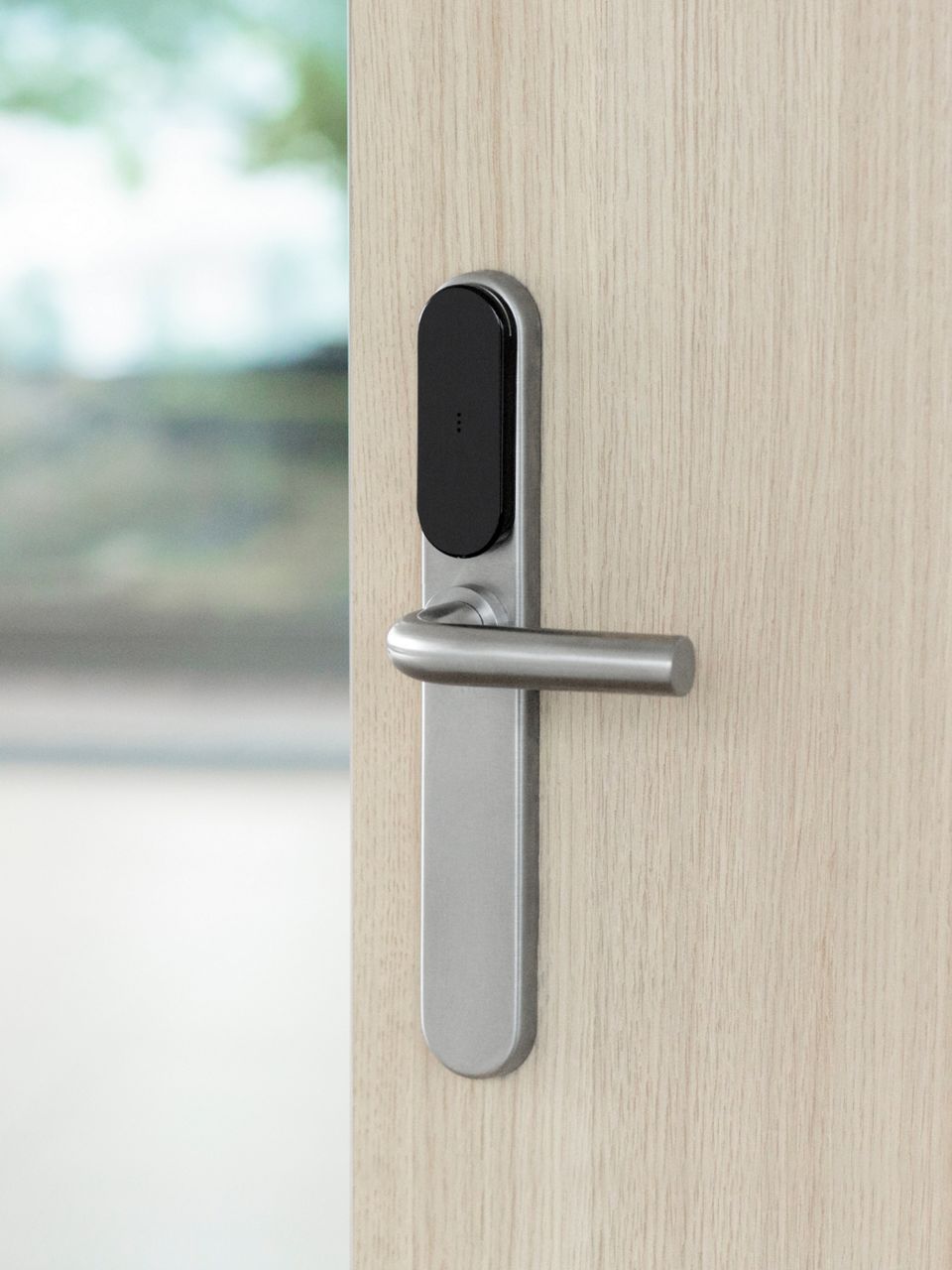

A robust wireless device to bring secure RFID and BLE unlocking to every high-traffic door. i-max, an electronic escutcheon is easy to retrofit and compatible with Standalone, UOC, online or offline system management.

Application

SMARTair i-max comes in a variety of finishes and with a slimline design to fit every building style and scheme. Different models of handles and antibacterial surface for healthcare applications are available.

Technical Data
Door profiles - Suitable for wooden, narrow or glass doors
Traffic volume - meduim to high
Exterior usage - IP54 (Xetreme version) Up to 85% humidity -20 °C to +70 °C
Hardware compatibility and installation - High retrofit (compatible with most common mortise locks). Drilling, no cabling. Doors from 30mm up to 110mm (thicker doors may be possible on demand)
Power supply - Battery (from 60.000 to 80.000 cycles)* max. 2 years standby**
Types of batteries:: 3 LR03 AAA 1.5V alkaline batteries
Multi-authentication - RFID and PIN
Status informatin - Handle usage. Thumb turn usage: only in privacy model/ door position: door sensor ot included. No (normally open) connection. Override cylinder (in combination with special mortise lock)
Certification - CE (EMC, R&TTE). ROHS, REACH, WEE. EN1634 (Fire)
RFID tegnologies - HID iClass(R). MIFARE Classic and Ultralight SKIDATA. DESFire.
System management upgradability - Escutcheons can be upgraded from standalone > Offline. Update on Card > Wireless online by:
- Adding RF Module
- Fireware upgrade
- Change of internal cover (plastic top)

* Depending on reading technology (MIFARE), iClass etc.)
** Depending on cycles per day.

Function

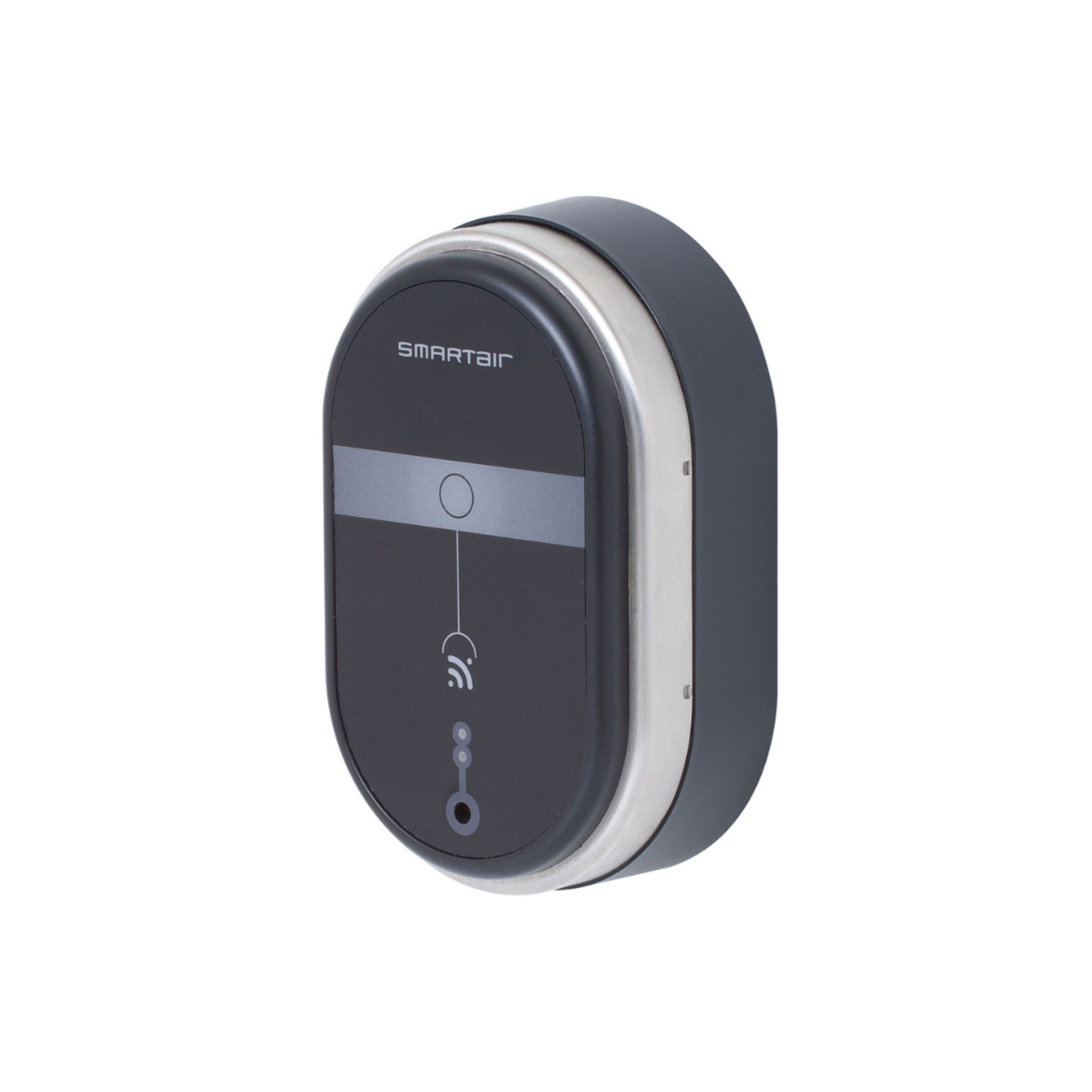

The SMARTair Wall Reader is a unique and elegant access control solution designed for simple installation and operation.

The Wall Reader operates magnet locks, electric strike or electronic locks. All the control elements are on the inside of the door to enhance security.

Applications

Access control for commercial and institutional facilities, including offices, hospitals, factories, assisted living facilities, schools, sports clubs and more.

Management options*

Standalone; Offline; Update-On-Card (UOC); Wireless

* Products are upgradable from Standalone to Wireless

Features

Simple installation

Simple operation

4-digit code

System management through easy-to-use software including: Authorizations; Time schedules; Daylight savings time and holidays; Deletion and replacement of lost tags; Audit trail; Temporary blockage; 4 operation modes - Standard, Open, First person in, Dual user (available only in the wireless version)

Scales up to 64,000 user cards and up to 64,000 doors per system

Specifications

13.56 MHz, MIFARE^® DESFire or iClass technology
Contactless cards/tags
2-4 cm read/write distance
Temperature range: -10°C to 80°C
12V AC/DC power
Consumption: Relay not active - 20µA; Relay active - 150mA
Relay: NO, NC, C
Wireless frequency: 868MHz or 915 MHz

Options

With or without keypad (with keypad is not available as Standalone): RFID only; RFID and code; Code only

SMARTair i-volution is built for doors with high daily traffic and a large number of access events. It is perfect where the familiar, convenient features of an electromechanical lock are required, including door position monitoring.

Combine the powerful access control of an electronic escutcheon with the intelligence and superior of an electromechanical mortise lock. Use with a wide variety of handles, RFID technology or SMARTair management system.

Part of the SMARTair wireless access control product range, the device incorporates:

• an external reader with LED, available in several colours;
• the internal control and battery-powered RF module; and
• the battery-powered electromechanical mortise lock.

These three principal components are supplied together. You may choose any DIN-compliant handle to operate your new lock.

The lock includes sensors which monitor and report when a door is left open or closed incorrectly, or when an attempted intrusion is detected. You can install an additional mechanical cylinder (optional), to unlock the door quickly and manually in any emergency. If you do, SMARTair Lock sensors also register any locking/unlocking event via mechanical key.

The new lock works seamlessly with every SMARTair management option: Standalone, Update-on-Card, Wireless Online and Openow. It recognizes standard RFID technologies (MIFARE^®  Classic) and mobile access control solutions such as Openowä and the SMARTair Remote app.

With its robust design and attack resistance, SMARTair i-volution is built for universities, schools, hospitals and residential care homes; offices or co-working spaces; residence blocks and apartments; and public buildings like town halls, sports centres and libraries.

SMARTair i-volution at a glance:

• The most advanced technology
• Smartphone opening
• Careful minimalistic design
• Secure encrypted communications
• Total wireless online control
• Collect events stored on the locks
• Battery status monitoring
• Access modification without lock updating
• New user registration without lock updating
• Express card cancellation

Function

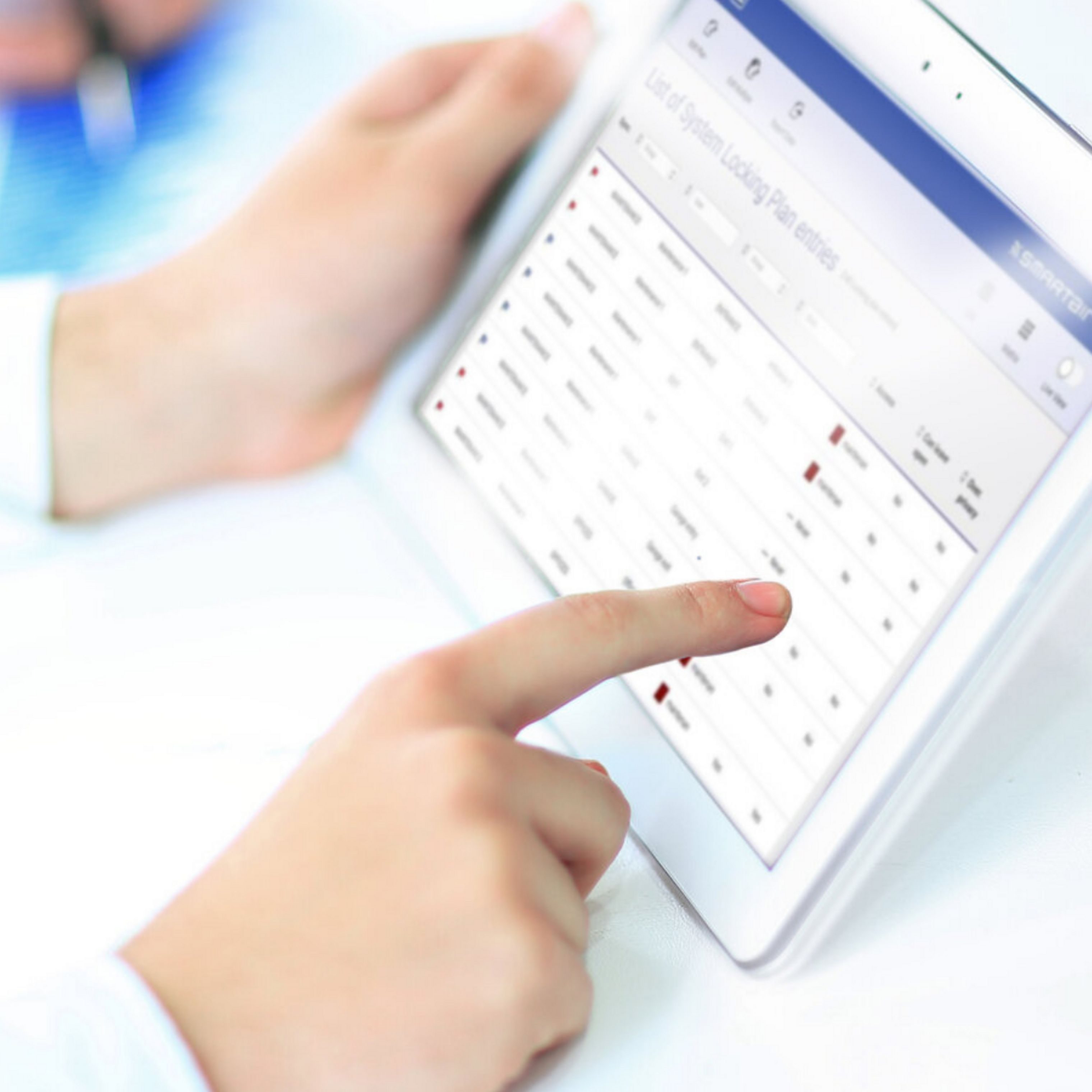

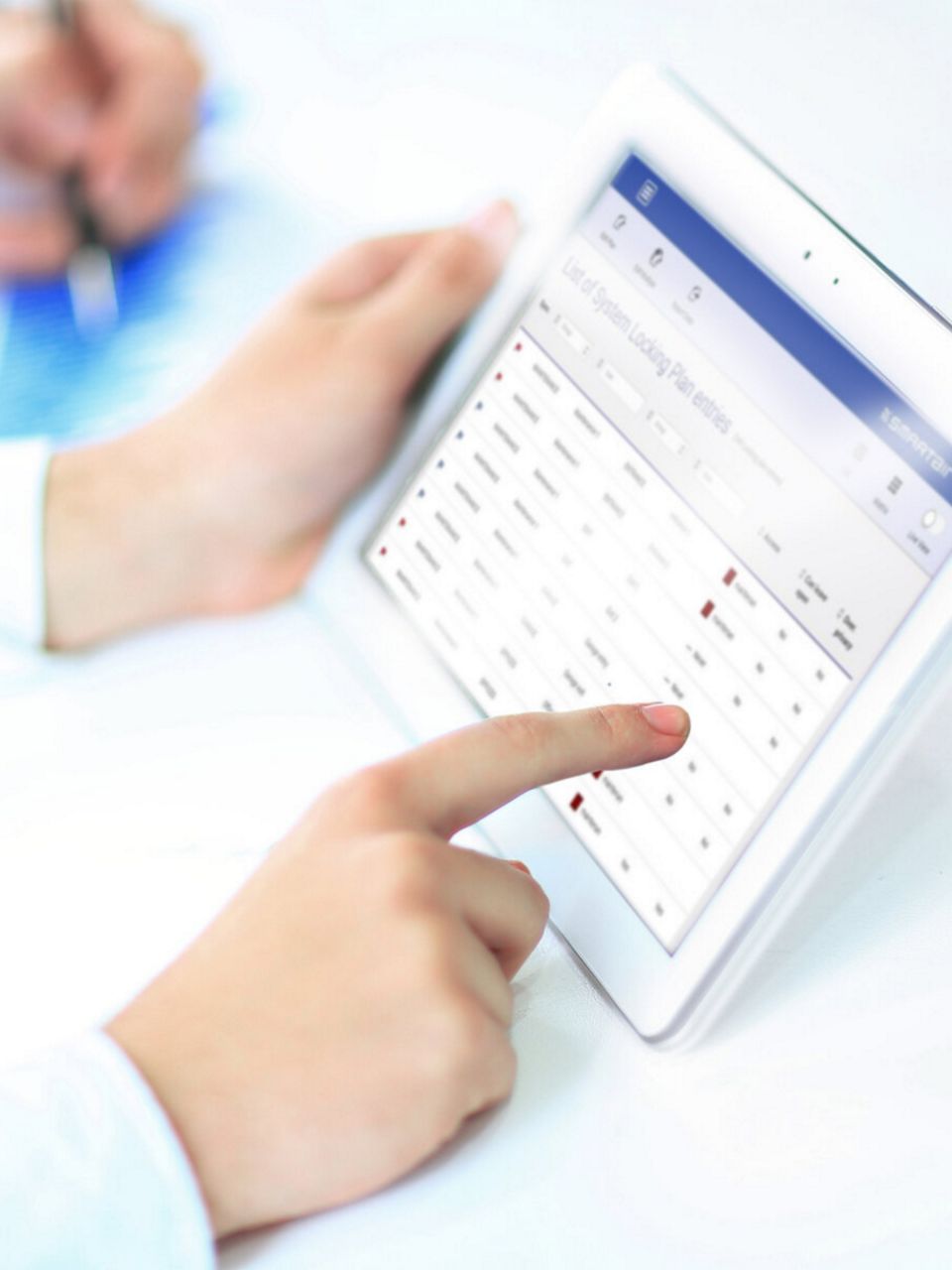

For the ultimate in access flexibility, SMARTair TS1000 software enables system admin from any device. Manage offline, Update on Card and online devices within the same installation and one interface.

The SMARTair TS1000 software is the most intuitive management software on the market. It brings flexibility and — if required — real-time control to any installation. Easy upgradability, a core SMARTair philosophy, is right at the heart of your TS1000 software user experience.

SMARTair TS1000 puts managers in complete control of all access from a single point. Its secure client–server architecture with web services allows system management from virtually any device — PC, tablet or smartphone — and from multiple points. There is no need for managers to stay physically at their site, and no software for clients to install.

With the SMARTair TS1000 software, facilities and security managers can opt to manage access rights with calendar schedules for different user groups. The system offers ongoing flexibility, easily incorporating new doors, new users and permissions, calendars and time zones. Up to 30 separate schedules can be incorporated.

With SMARTair TS1000 software, you can easily combine different management systems within one installation. For example, perimeter doors are equipped with Wireless Online functionality, while many interior doors are managed by Update on Card. A single software interface controls it all.

The TS1000 also offers the capability to upgrade quickly from Offline to Update on Card or Wireless Online management. Your investment is future-proofed, because SMARTair’s software does the upgrading for you.

The SMARTair Management Software includes:

A USB memory device that contains: SMARTair Software installation file; Site data (the license); Technical manuals
Authorization key programmed with the system's code
The easy-to-use SMARTair Software manages all types of SMARTair products − escutcheons, wall readers, cabinet lock, knob cylinders and others − simultaneously.


Software requirements

PC with Pentium 4 processor or higher
1 GB of free RAM
1 GB or free disk space
32-bit or 64-bit Microsoft Windows Operating System supporting services (Windows 95, Windows 98 and Windows ME are not supported)

Site data

The 'site data' is supplied with the software and includes the license for the system and a unique 8-figure alphanumeric system code
All information regarding the system (user list, door list, authorization matrix, time profiles, etc.) is kept in the site data file

Authorization Key

The Authorization Key enhances security for the SMARTair system
Each Authorization Key contains the system's unique corresponding
system code
In order for the Portable Programmer to function, the Authorization Key must be inserted. Without it, the Portable Programmer will not update the door or retrieve audit trails. It is possible to override the Portable Programmer by logging into the system's software

Types of licenses

For the different products (upgrades available): Offline; Update-On-Card (UOC); Wireless
According to the number of doors in the system (upgrade available): Up to 10 doors; Up to 30 doors; Up to 75 doors; More then 75 doors
With Anti-Pass Back functionality (this feature is available with any license)

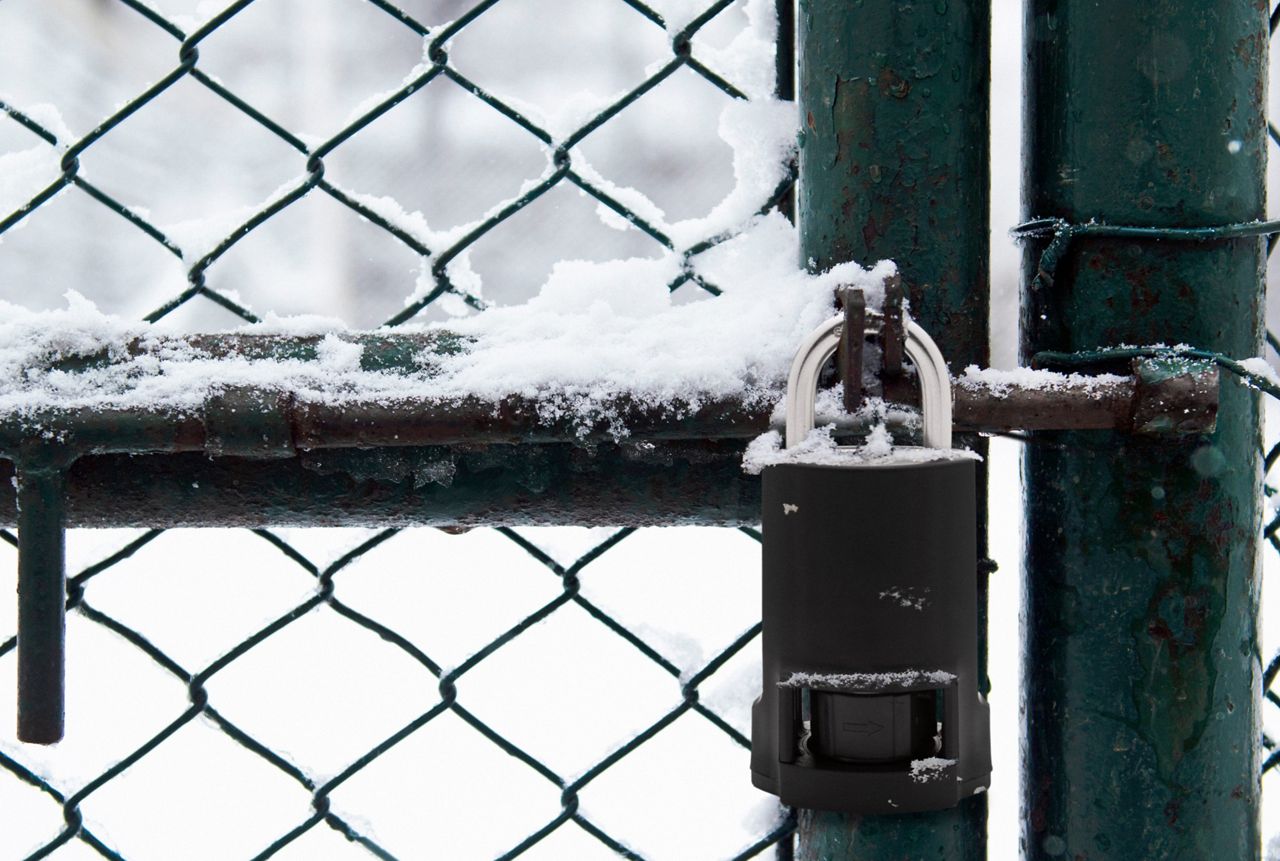

A wireless, electronic IP68 padlock, built for trusted security in the harshest conditions. Your premises can benefit from modern security and real-time access control — outside and inside.

The new SMARTair^® i-gate Padlock is a battery powered locking device improved in every way. As well as resistance to physical attack, it has an external cover which is watertight and protects against any weather.

Easily installed, with no drilling or wiring required. Use is straightforward: RFID and BLE-enabled, i-gate Padlock can be opened with standard RFID credentials or by a mobile key stored on a smartphone. Power is supplied by standard batteries with a long lifetime.

To upgrade an existing mechanical padlock, simply swap it for the SMARTair^® i-gate Padlock to control and monitor the opening from your existing SMARTair^® access system. You can move an i-gate Padlock wherever and whenever you need.

The SMARTair^® i-gate Electronic Padlock comes in a contemporary black finish with stainless steel shackle. It is suited locking exterior, non-electrified gates; interior cupboards and cabinets; and anywhere else currently secured by mechanical padlock.

Key features of the new i-gate Electronic Padlock include:

-      Compatible with all SMARTair^® management options, online and offline

-      Use RFID credentials, Openow virtual keys or the SMARTair^® Remote app

-      Exterior usage rating: IP68

-      Internal knob cylinder has Durability EN 15684 Class 6 certification

-      RFID reader with LED (blue/red) for different warning signals

-      Typical battery lifetime: 60,000 cycles
