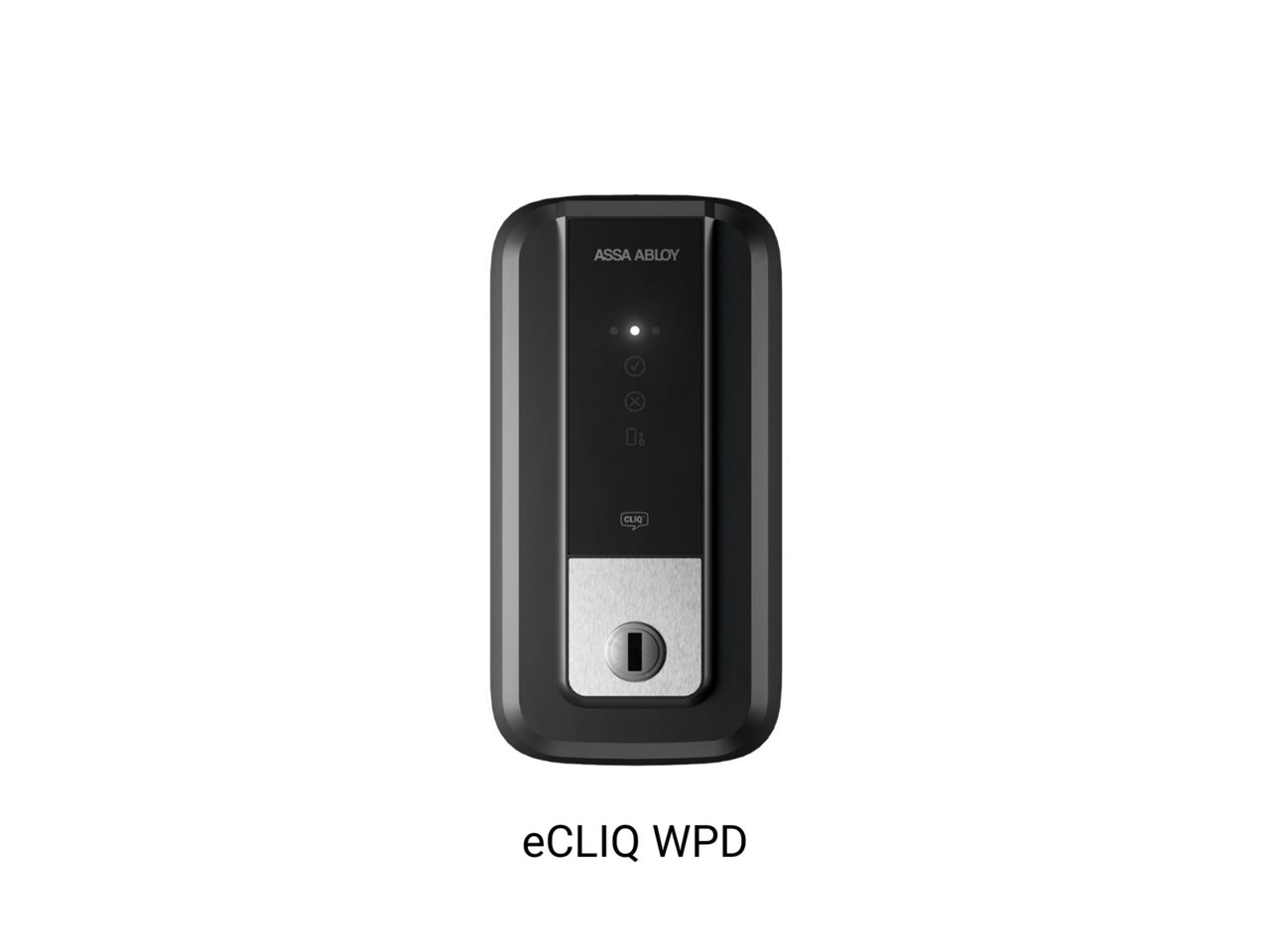

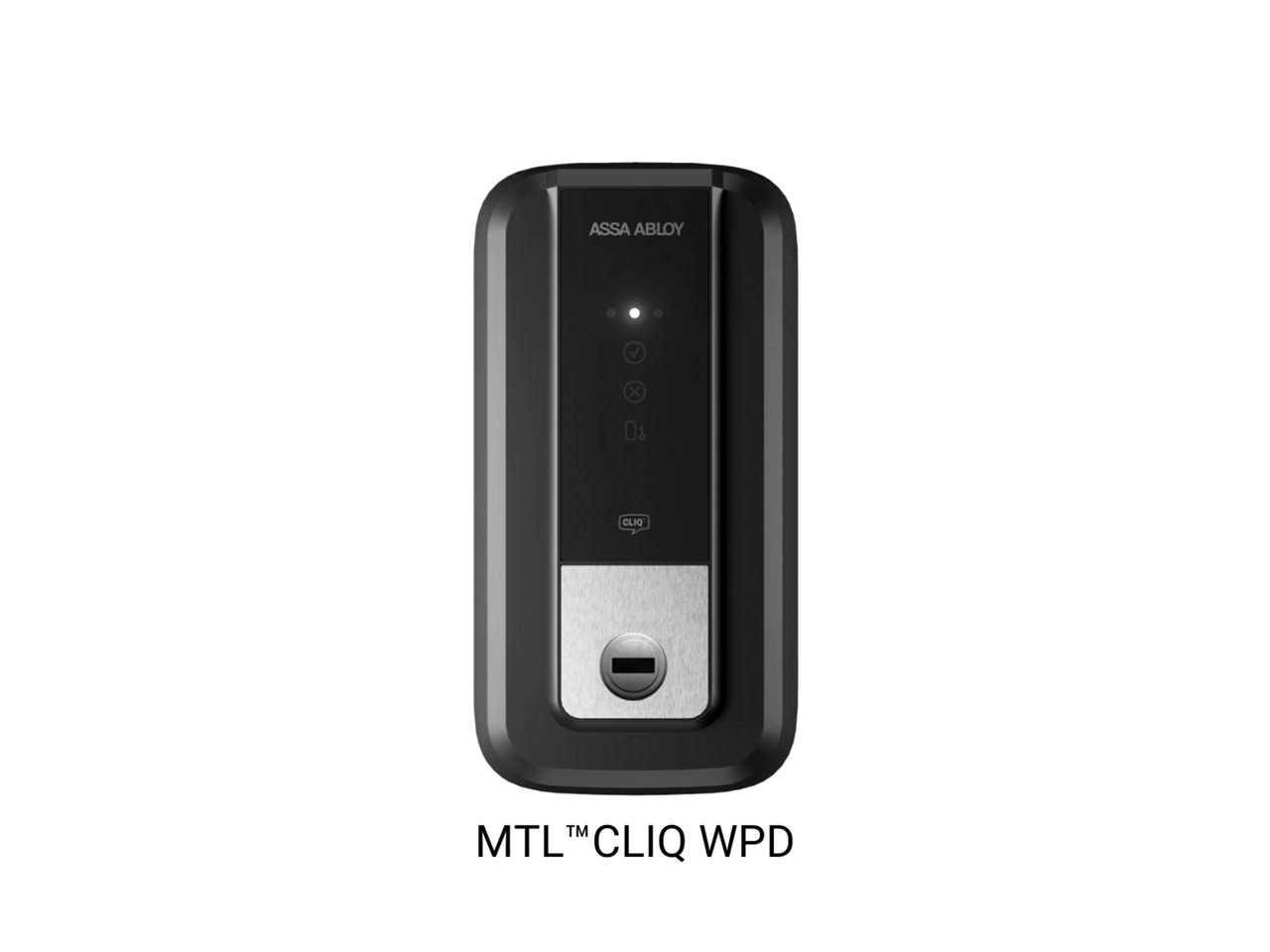

The CLIQ Wall Programming Device, available as indoor and outdoor variant, is the interface between the CLIQ management software and user keys.

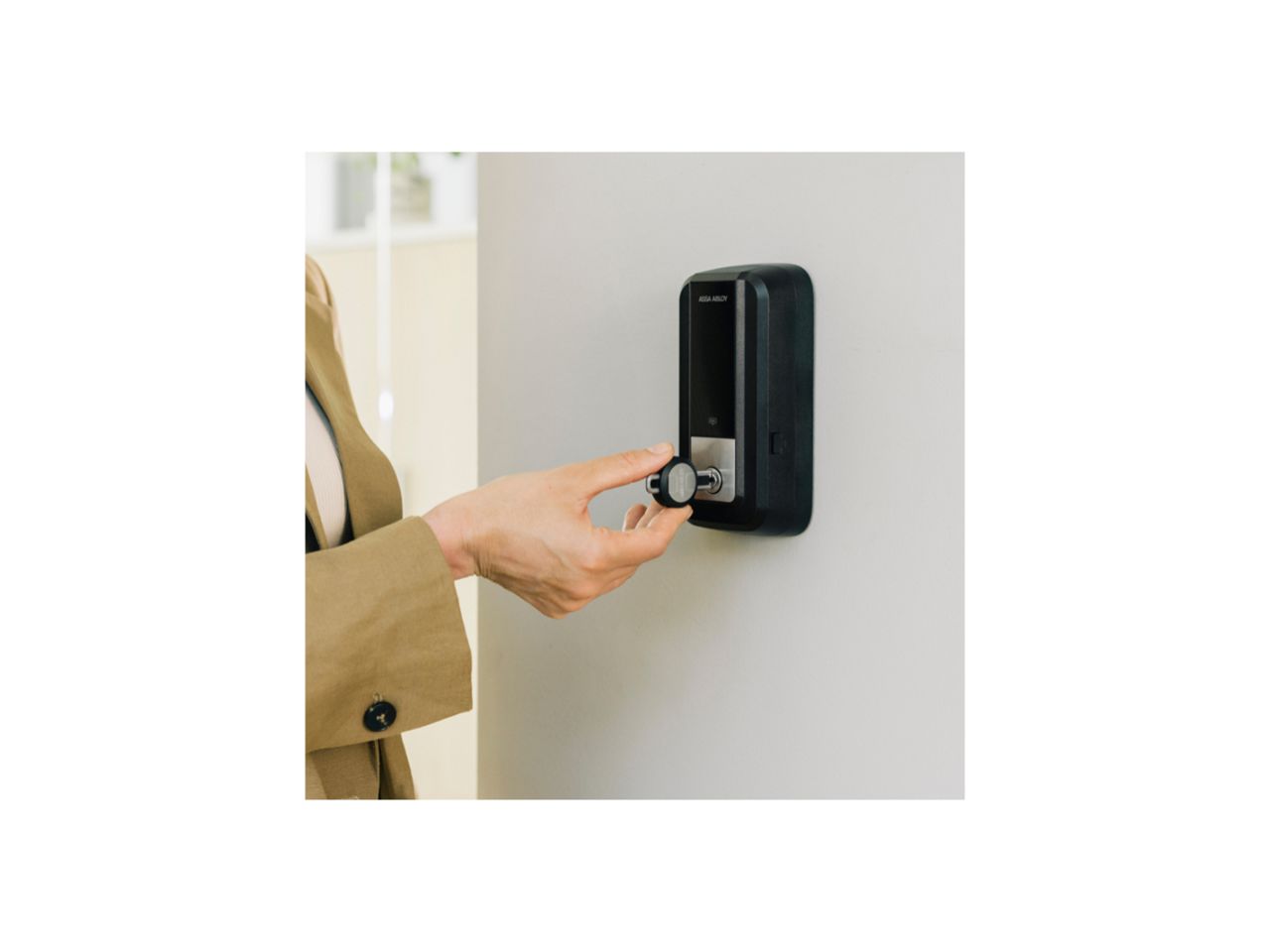

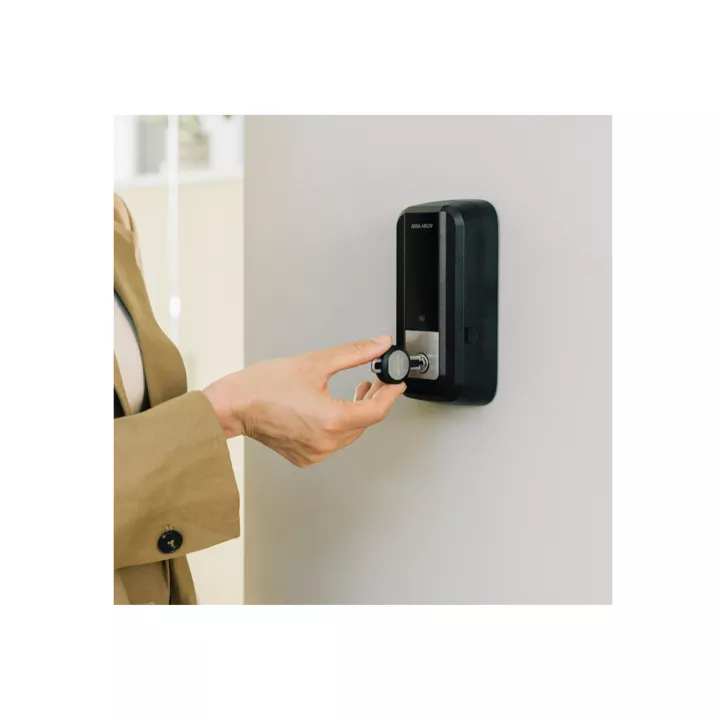

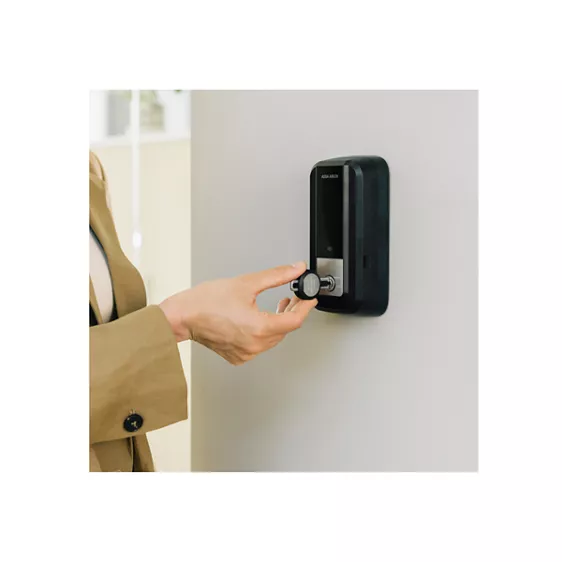

It can be deployed centrally in a strategically chosen, fixed location for example, at a main building entrance, offering the convenience of day-to-day CLIQ key user updating. Protected against weather and vandalism, the CLIQ Outdoor Wall PD is the ideal solution for demanding environments.
Any type of CLIQ key can be quickly and easily revalidated with updated time schedules and access rights. In addition, event logs can also be extracted from a user key.
Features
Benefits
Name | Value |
---|---|

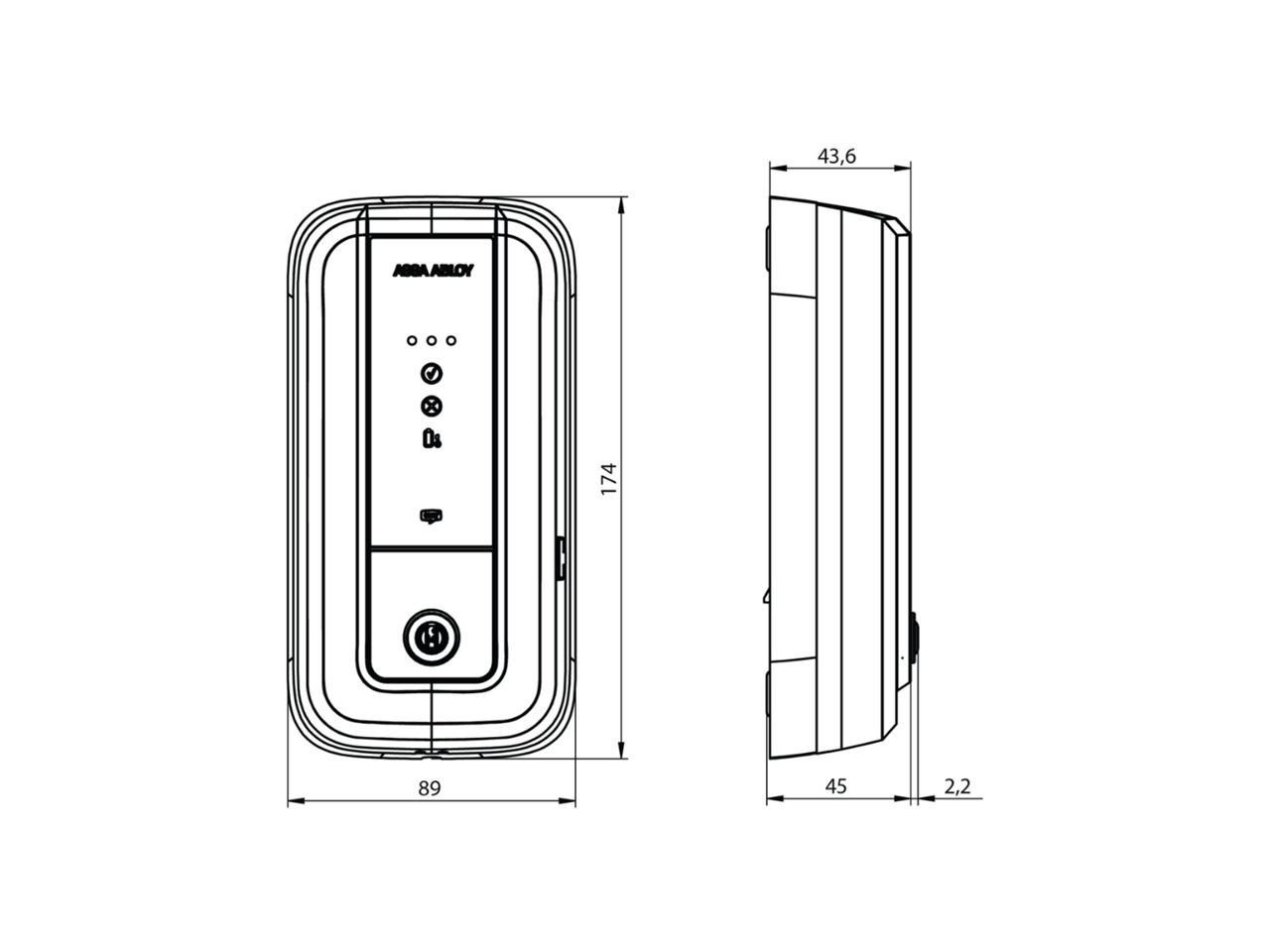

Dimensions | Indoor: 89 x 43 x 174 ± 2 mm | Outdoor: 119 x 63 x 221 ±2 mm (W x D x H) |
Mounting | Wall |
Key adapter | Product Company Specific |
Data storage | Yes |
Connection | 10BASE-Te & 100BASE-TX – Ethernet |
Security | IEEE 802.1X network authentication |
Encryption | AES & 3DES |
Interfaces | Free Output – 30V @ 0.5A | RS485 | USB Type-C |
Power | 12-24 VDC 3W or PoE Class 1, Type 1 (IEEE 802.3af) |
Indications | Visual and audible |
Ingress protection classification | Indoor: IP20 | Outdoor: IP65 |
Impact protection classification | IK09 (for outdoor variant) |
Certification | Conformité Européenne – CE | UK Conformity Assessed – UKCA | USA – FCC CFR 47 | Alarm system – EN 50130-4 | Enclosure – UL50E, Type 3R (for outdoor variant) |
