Secure almost any opening
Lock doors, cabinets, gates, machines, explosive environments and much more

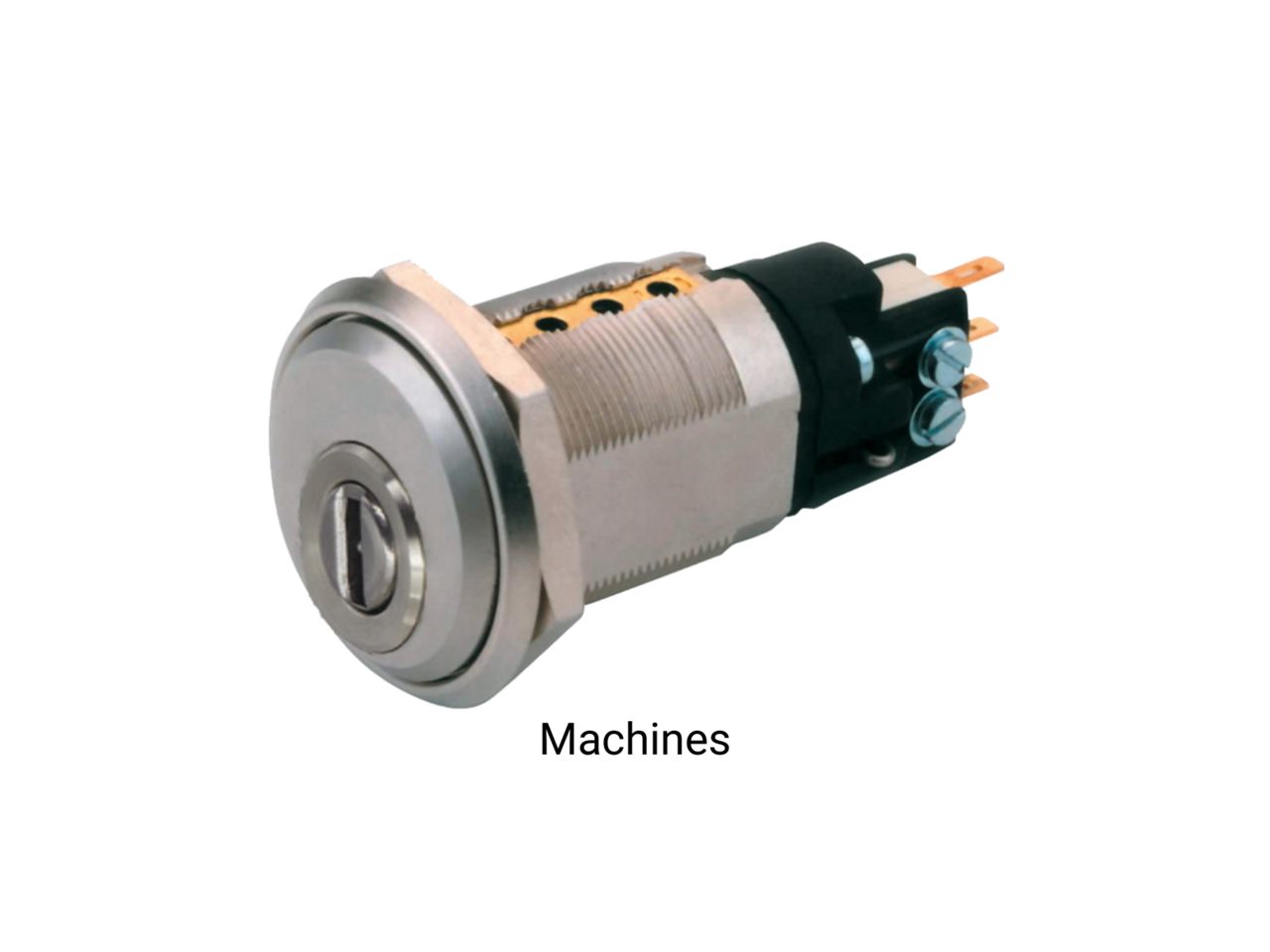

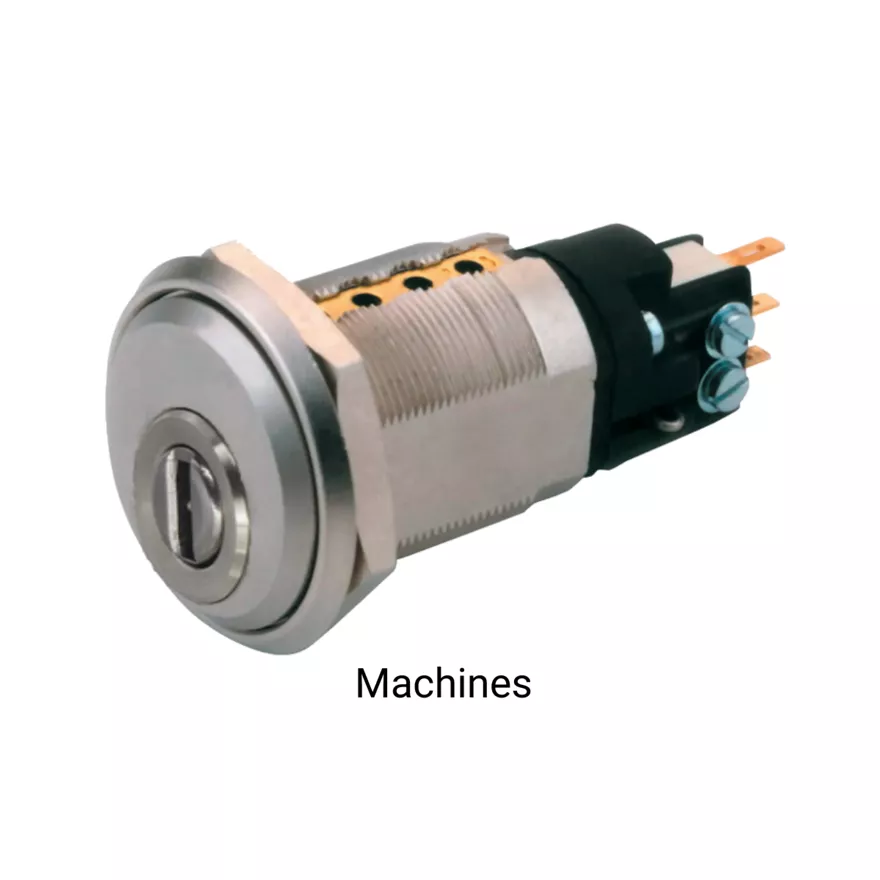

Switch Cylinder
Switching cylinders are mainly used for electrical equipment, switching systems or lift controls.
CLIQ hardware has different switch cylinder versions to suit various areas of application.
-1:1x1?wid=40&hei=40&qlt=40&fmt=png-alpha){kind=spacer}
Fit quickly and wire-free
Easy retrofitting without cabling or drilling: just swap mechanical for CLIQ cylinders
Operate with all CLIQ keys
More convenient for building users, facility managers and locksmith partners
Product description
- Available as electronical version (V=)
- Switch cylinder with one key withdrawal position at 0° and one scanning position at 60° (AUS=OFF)
- Optionally with 2 key withdrawal positions at 0° and 60° (AUS=ON/OFF)
- Brass cylinder housing components
- Maintenance-free for up to 200,000 cycles
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
- Splash-proof IP54
- Dust and rain cover available (SUR=1) IP55
- Key rotation 60°
- A rotation actuates a switch device (e.g. underground car parks, etc.).
- One microswitch F4T6-GP UL (Burgess) (VAC 48 V/ resistive load 5A, VAC 48 V/ inductive load 0.5 A)
- Fixing with M19 x 1 x 5 housing nut
Scope of delivery
- 1 switch cylinder
- 1 housing nut M19 x 1 x 5
