Secure almost any opening
Lock doors, cabinets, gates, machines, explosive environments and much more
Cliq cylinder variety

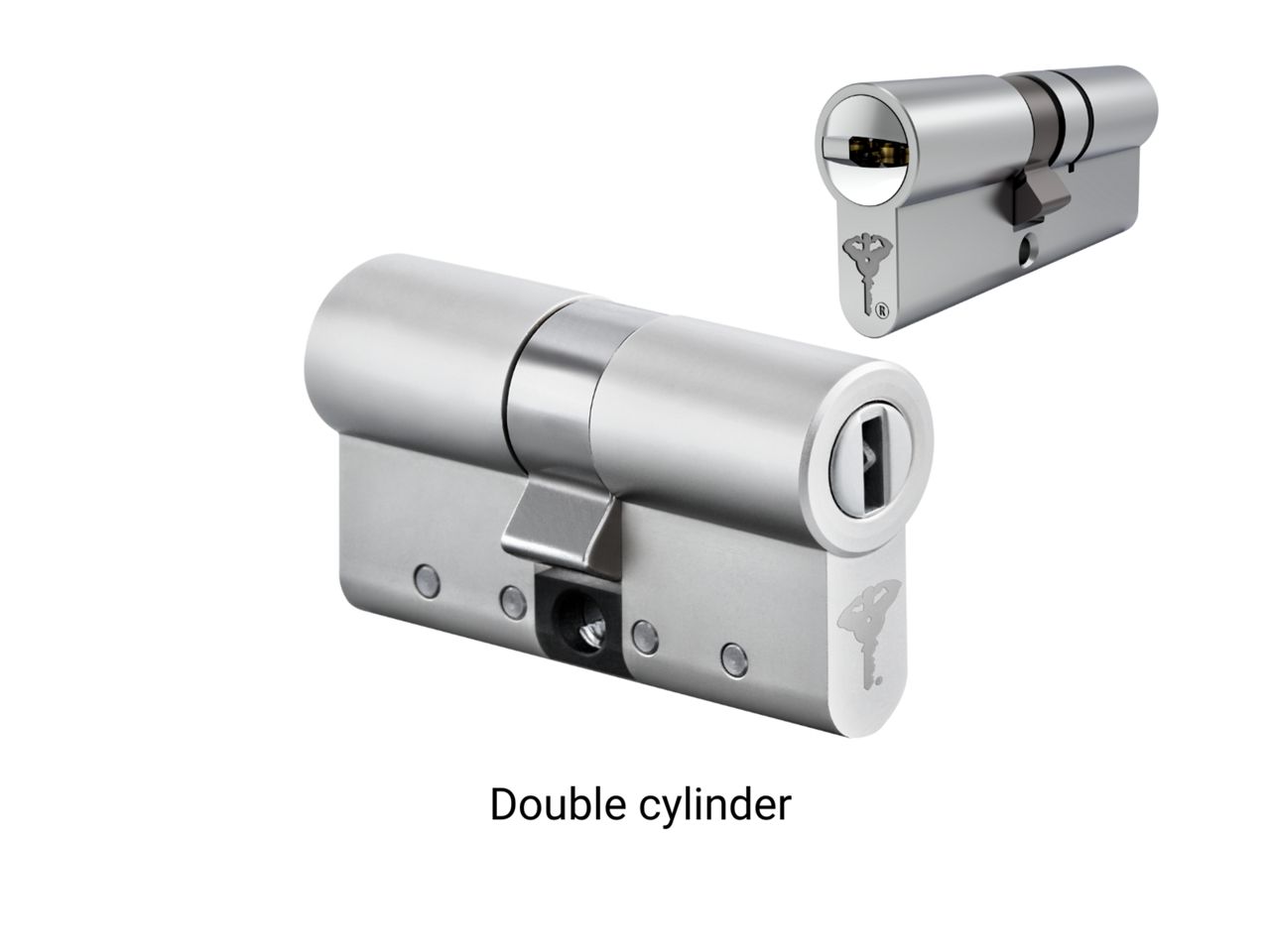

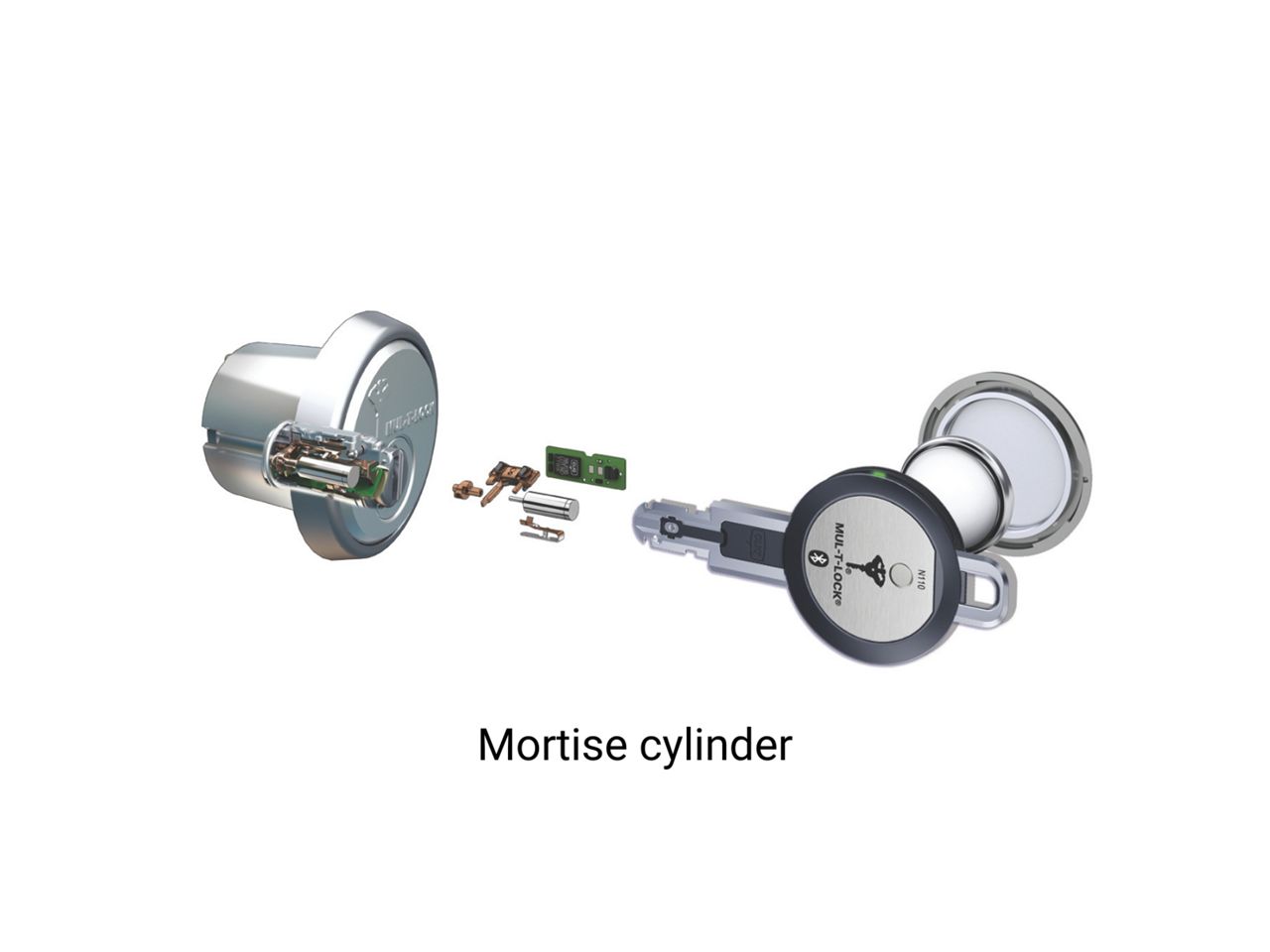

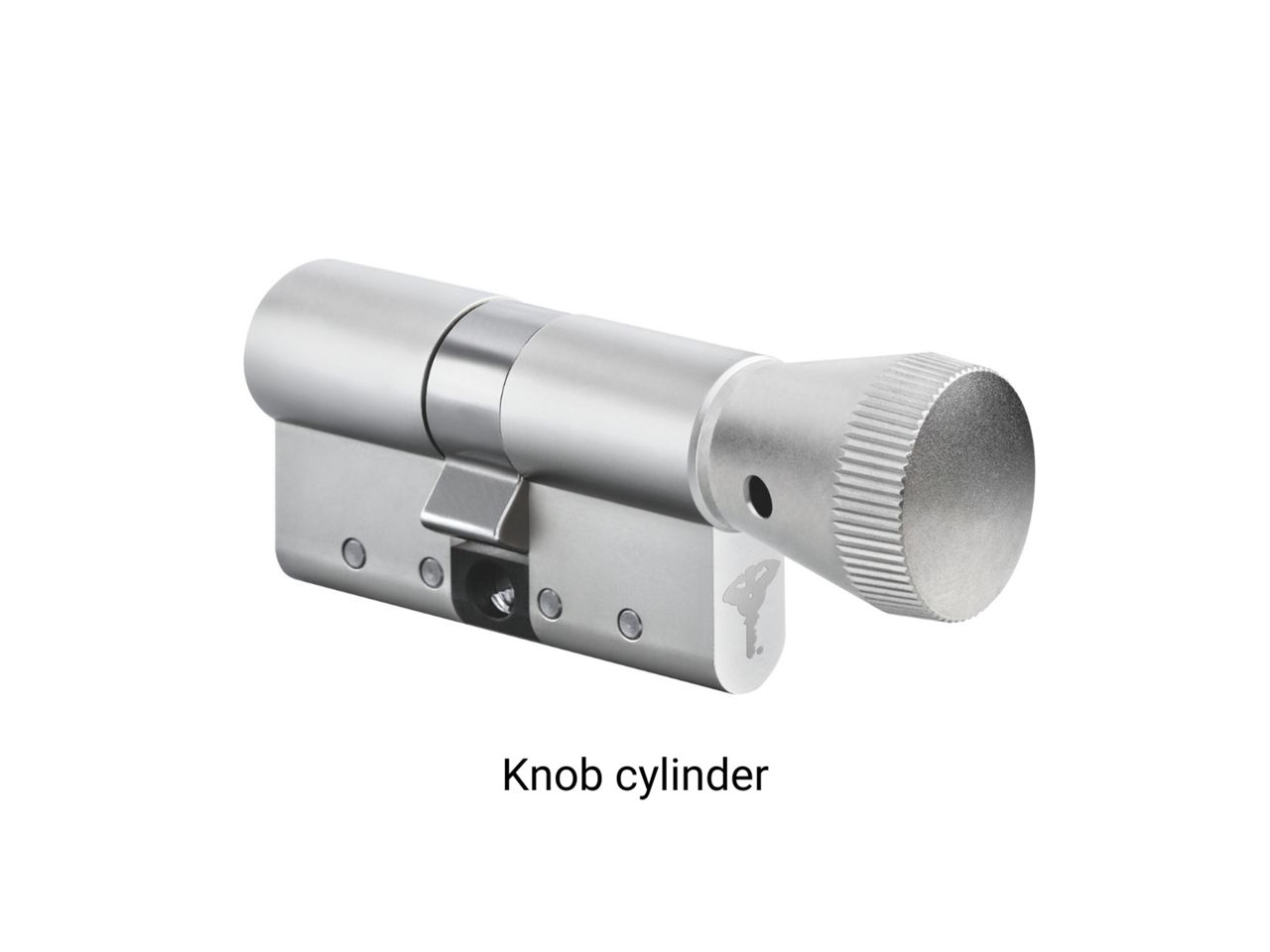

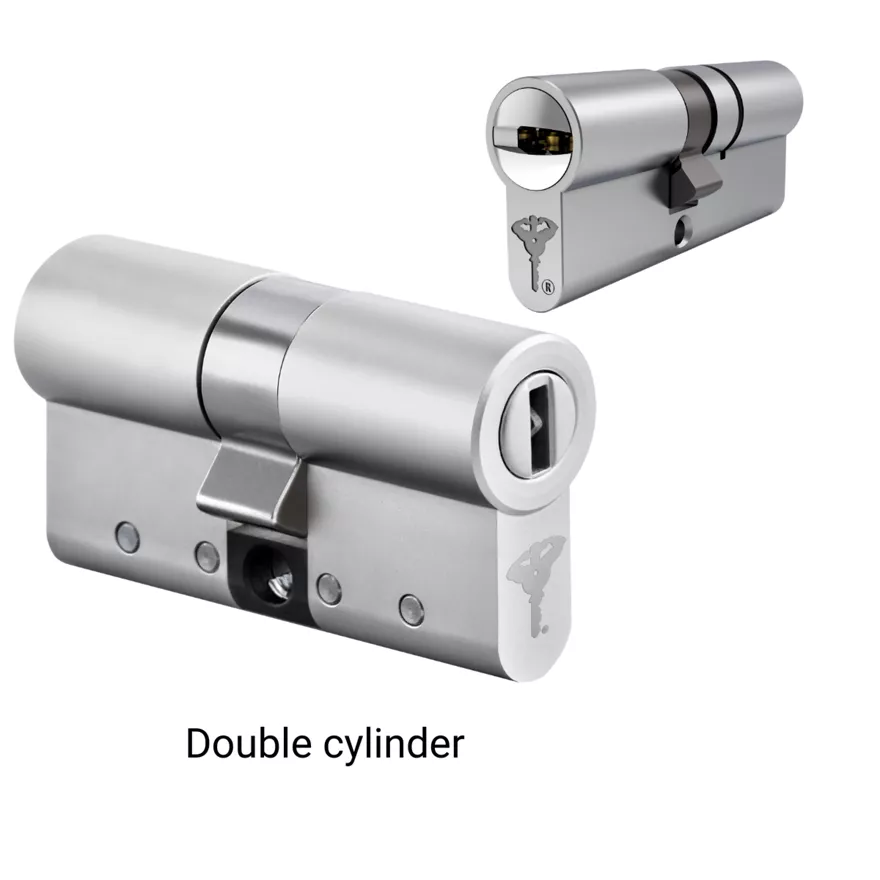

Bilaterally locking profile double cylinders as well as profile knob cylinders and a variety of other types of cylinders are generally found on entrance and exit doors in conjunction with mortise locks in public, commercial and residential buildings.
Due to the flexible modular system the CLIQ cylinders can be adapted to different installation lengths to suit every installation requirement. Moreover, different memory versions and equipment variants can be selected (e.g. anti-drilling protection, Comfort function for bilateral opening, explosion protection or time functions).
Fit quickly and wire-free
Easy retrofitting without cabling or drilling: just swap mechanical for CLIQ cylinders
Compatible with all keys
When users carry one programmable key, access management is more flexible
Product description
- Available as rotary secured or electronical version (V=)
- Other side can feature an electronic or rotary-secured design
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
- Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
- Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
- Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
- Optional with SST=FZG possible
- Optionally available with anti drilling protection class 2 (AB=2)
- Both side locking (GE=BS) and 360° free-wheeling function as standard
- Cam made of break-proof, corrosion-resistant stainless steel
- Maintenance-free for up to 200,000 cycles
- Splash-proof IP54
- Dust and rain protection cap available for one or both sides (SUR=3/-, -/3, 3/3) IP55
- Optionally VdS★★★ (SZ=VDS-BZ+, AB=3)
- Optionally DIN EN 15684 with anti drilling protection class 2 (SZ=DIN, AB=2)
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
- 1 profile-double cylinder
- 1 cylinder fixing screw M5 x 85 mm
