Secure almost any opening
Lock doors, cabinets, gates, machines, explosive environments and much more

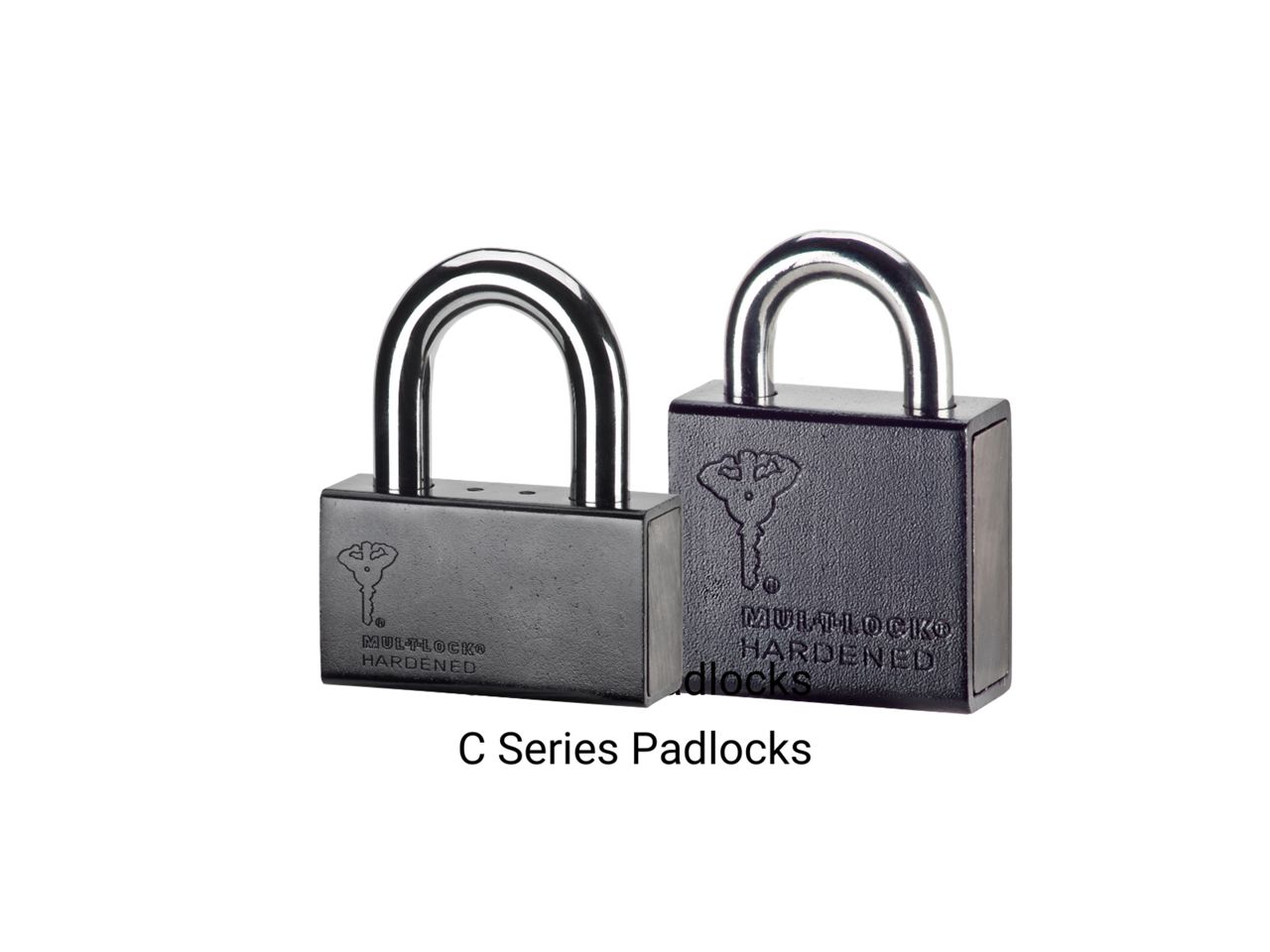

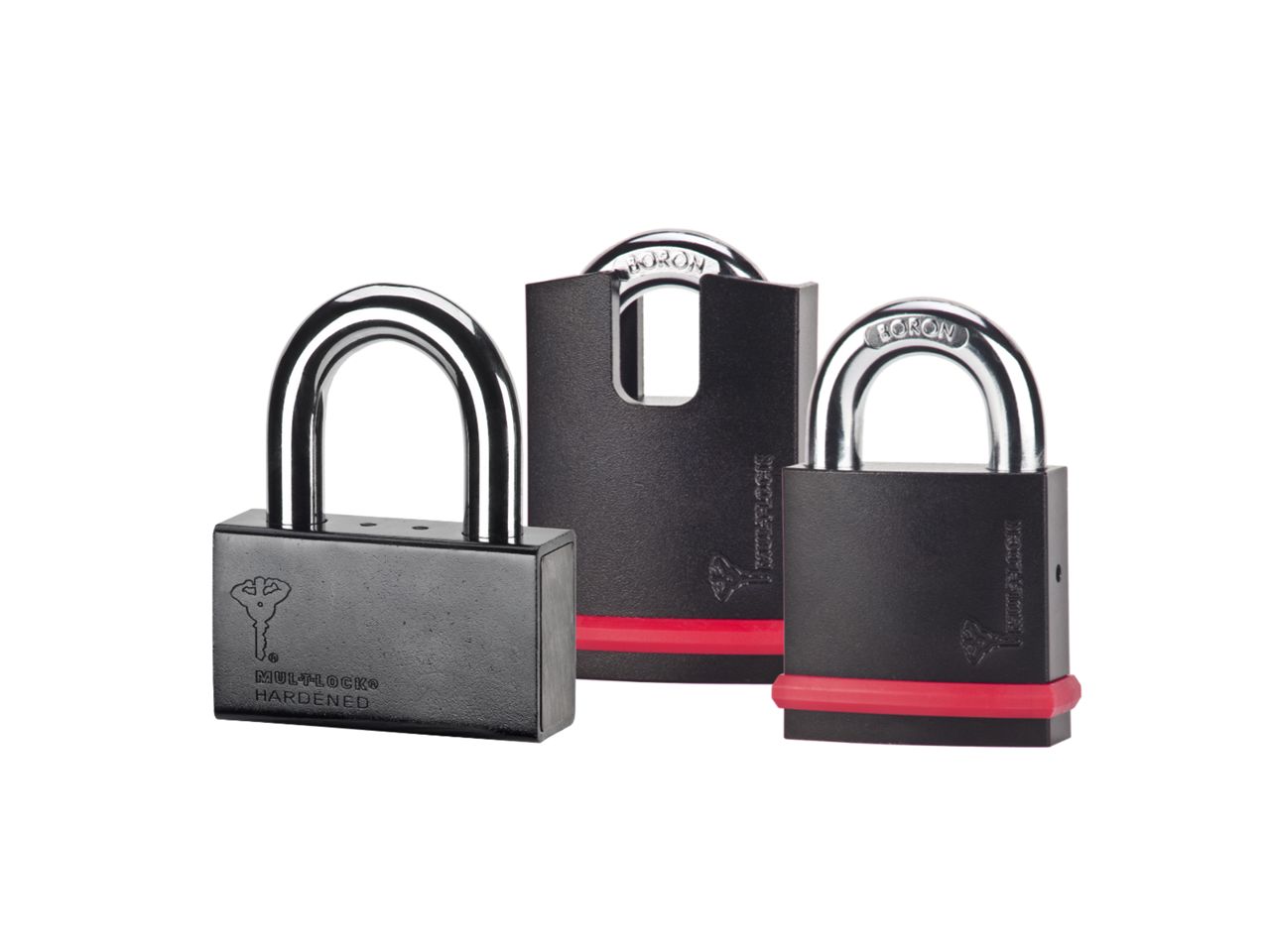

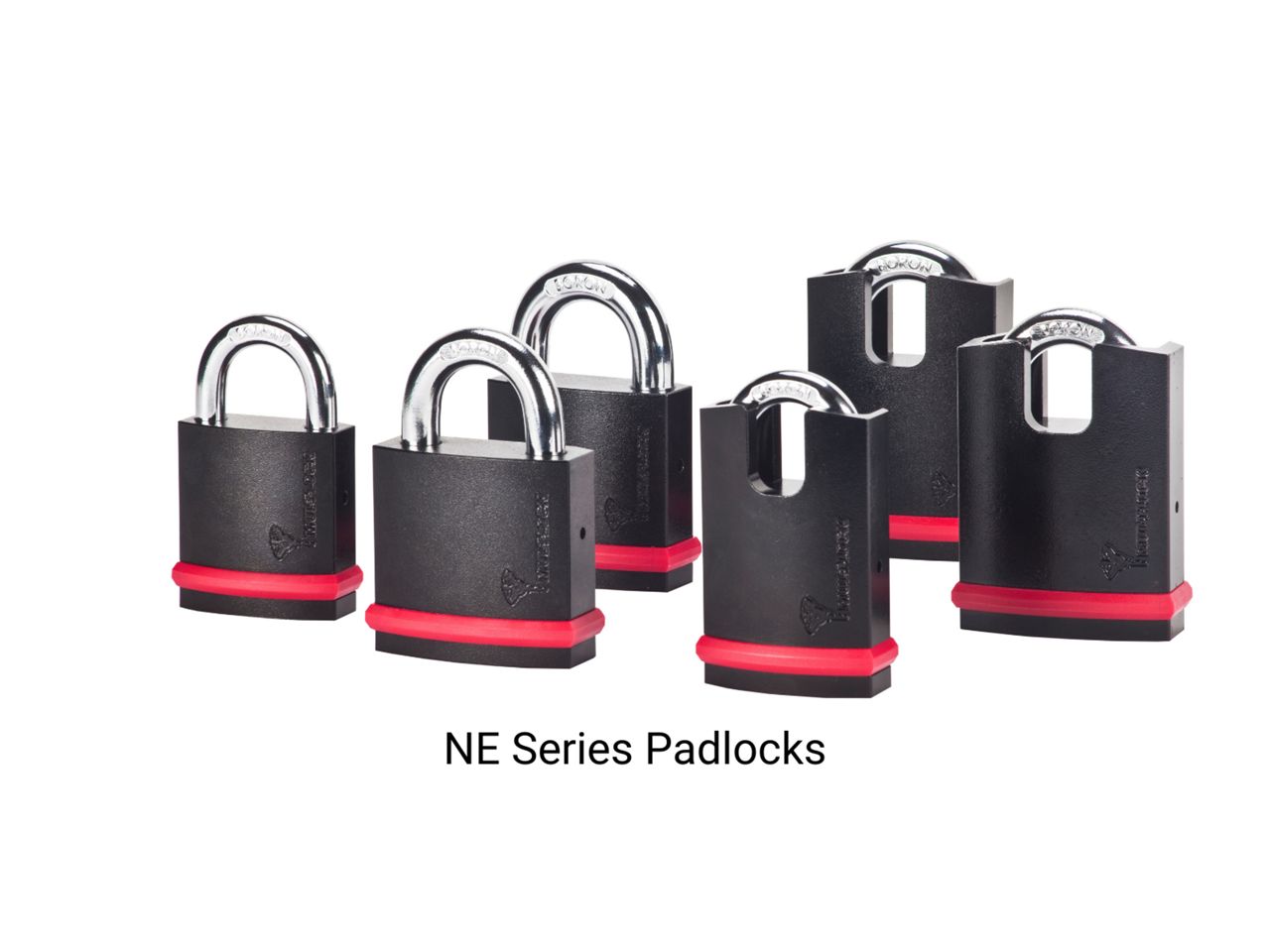

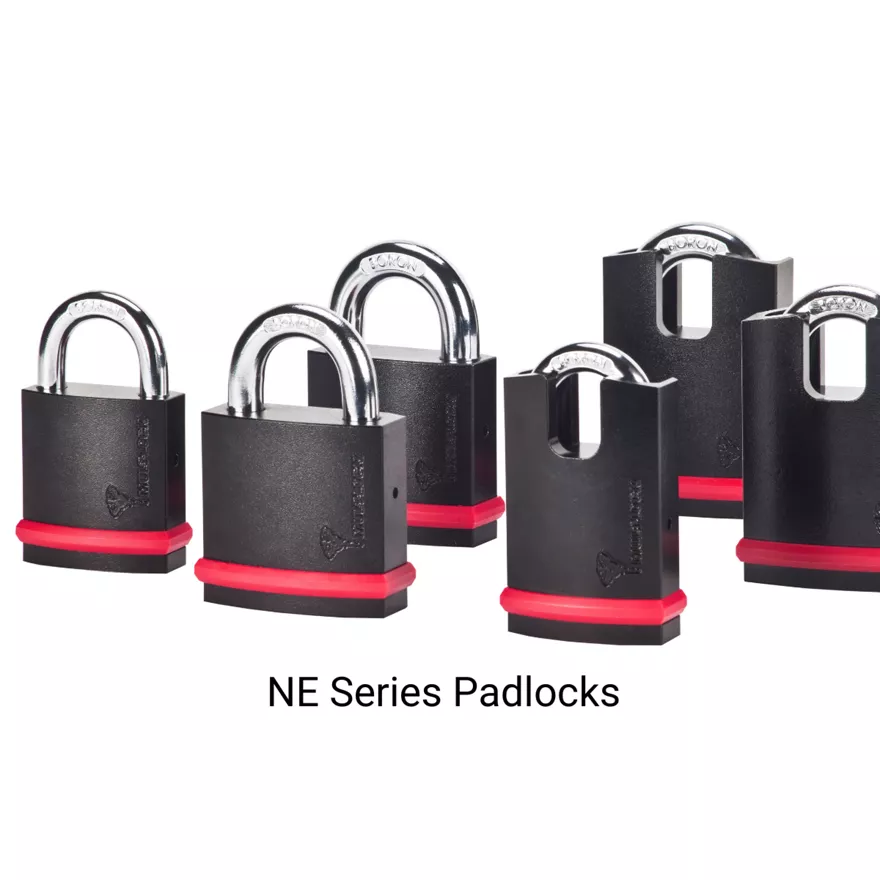

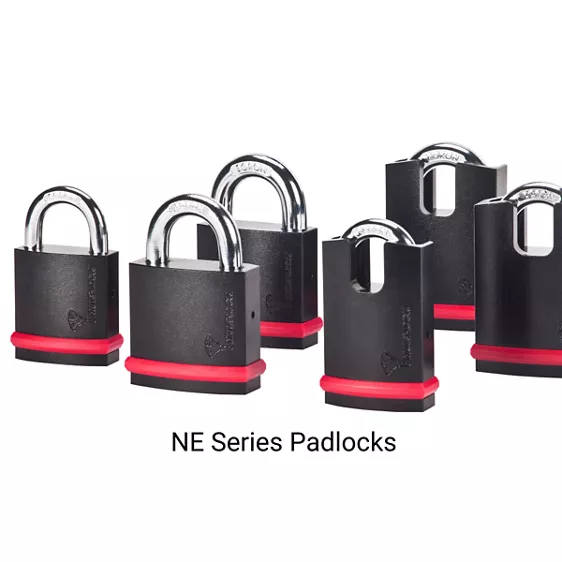

Cylinder Padlock
Padlocks are used for a variety of residential and commercial applications (e.g. for additional locking of doors, metal grilles and gates).
Padlocks can, depending on the version, be integrated into locking systems.. All our padlocks work with any CLIQ key.
Compatible with all keys
When users carry one programmable key, access management is more flexible
Product description
- Available as electronical version (V=)
- Standard shackle clearance height 25 mm (AUS=LH25)
- Other shackle heights (AUS=LH50, LH75, LH28/5)
- Steel shackle, diameter 8 mm, hardened and chrome-plated
- Steel shackle diameter 5 mm at shackle height 28 mm (AUS=LH28/5), hardened and chrome-plated
- Optionally with non-corroding shackles (AUS=LH25-NIRO)
- Housing chrome-plated in brass
- Cylinder, nickel-plated brass satin
- With forced locking as standard
- Optionally available without forced locking (AUS2= OHNE ZWANGSSCHL)
- Standard version as per DIN EN 16864 class 3 (not valid for AUS=LH28/5)
- Standard with dust and rain cover (SUR=3) IP55
- Optionally IP54 without dust and rain cover (SUR=0)
- Optionally IP67 certified with protective cap (SUR=2)
- Maintenance-free for up to 200,000 cycles
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
- 1 cylinder padlock
